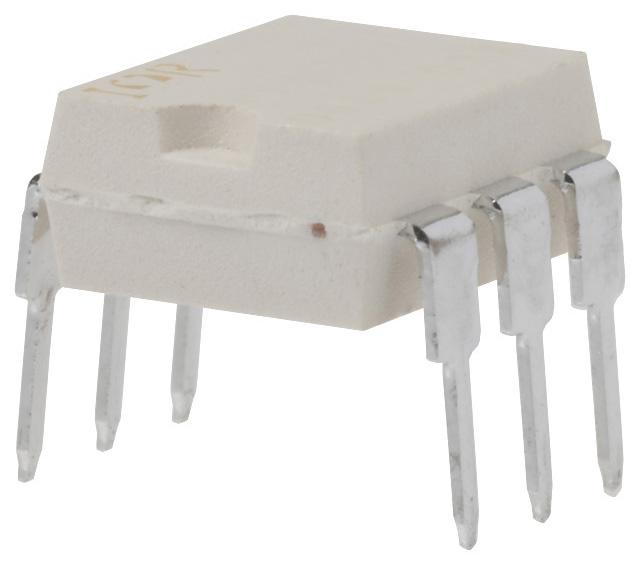

ONSEMI MOC3081M Triac Driver Optocoupler
The MOC3081-M is an 800V zero crossing TRIAC driver optocoupler. It features a gallium arsenide infrared LED optically coupled to a monolithic silicon detector, enabling it to function as a zero voltage crossing bilateral TRIAC driver. Designed for easy interfacing with discrete power TRIACs, it is suitable for controlling 240VAC loads such as solid-state relays and solenoids. The device simplifies the logic control of high-voltage AC power, provides zero voltage crossing switching, and offers a dv/dt of up to 1500 V/μs (typical) with a guaranteed minimum of 600 V/μs. It is compatible with the FKPF12N80 discrete power TRIAC.
ONSEMI MOC3081M Triac Driver Optocoupler Specifications:
- Peak Voltage: 800 V peak
- Isolation Voltage: 4170 VAC for 1 minute
- dv/dt: Up to 1500 V/μs (typical), 600 V/μs guaranteed
- Input Forward Voltage: 1.3 - 1.5 V at 30 mA
- Storage Temperature: -40°C to +150°C
- Operating Temperature: -40°C to +85°C
- Junction Temperature: -40°C to +100°C
- Maximum Lead Solder Temperature: 260°C for 10 seconds
- Total Device Power Dissipation: 250 mW
- Isolation Resistance: >10^10 Ω at 500 V
- Mechanical Package: DIP 6-Pin or SMT options
- Suitable for high-voltage AC loads, industrial controls, relays, solenoids, and motor starters
- Compliance: UL1577, DIN EN/IEC60747-5-5
- Maximum Working Insulation Voltage: 850 V peak
Buy the Buy ON Semiconductor TRIAC Driver Part Number MOC3081M Online
Order the ON Semiconductor MOC3081M TRIAC driver optocoupler online today and benefit from high dv/dt switching capabilities, excellent isolation ratings, and easy integration for controlling 240VAC loads, relays, and motor starters. Perfect for industrial automation and solid-state relay projects, this device ensures safe high-voltage switching with guaranteed performance and reliable safety ratings. Get yours now for efficient high-voltage AC power management with minimal electromagnetic interference and enhanced safety features.
Buy ON Semiconductor MOC3081M now and experience unmatched reliability and performance in high-voltage AC switching applications.
Frequently Asked Questions
Where can I buy ONSEMI MOC3081M?
You can click on the BUY or RFQ button to purchase MOC3081M from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MOC3081M?
You can download the MOC3081M datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MOC3081M?
ONSEMI
