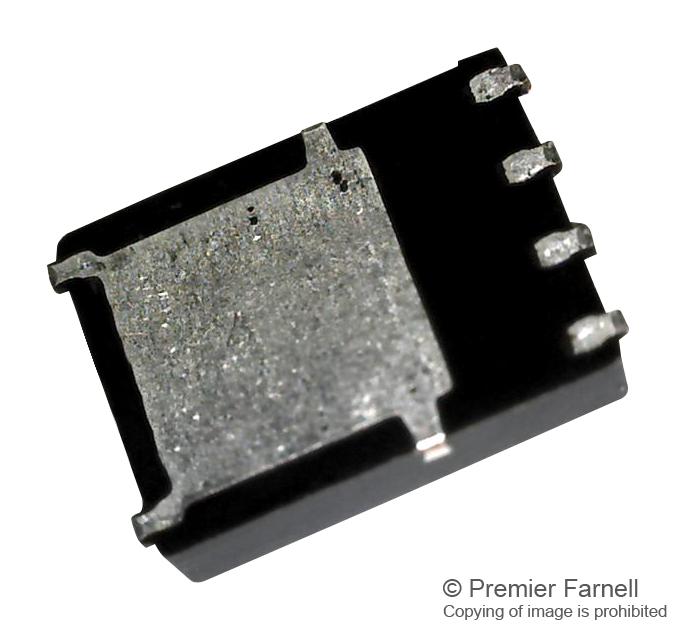

ONSEMI NTMFSC0D9N04CL Power MOSFET
The NTMFSCOD9NO4CL is a high-performance N-channel power MOSFET with Dual COOL® technology, designed for efficient switching in DC-DC conversion, load switching, and synchronous rectification. It features ultra-low Rds(on) to minimize conduction losses, robust packaging, and Pb-Free, Halogen-Free, RoHS-compliant materials, ensuring reliability and environmental safety. Capable of handling continuous drain currents up to 313 A at 40 V drain-to-source voltage, this device offers excellent thermal characteristics with junction-to-ambient resistance of 39 °C/W. Its advanced design makes it suitable for demanding power management applications, ensuring high efficiency and durability in industrial electronics.
ONSEMI NTMFSC0D9N04CL Power MOSFET Specifications:
- Drain-to-Source Voltage: 40 V
- Continuous Drain Current: 313 A at 25°C
- Power Dissipation: 167 W (steady), 38 W (steady), 900 A pulsed
- Maximum Junction Temperature: -55°C to 175°C
- Source Current (Body Diode): 169 A
- Avalanche Energy: 706 mJ
- Lead Soldering Reflow: 300°C for 10s
- Thermal Resistance (Junction-to-Ambient): 39 °C/W
- Gate-to-Source Voltage: ±20 V
- Gate Threshold Voltage: 1.2 - 2.0 V
- On Resistance Rds(on): 0.65 - 1.13 mΩ (at Vgs = 10 V and 4.5 V)
- Input Capacitance: 8500 pF
- Output Capacitance: 3400 pF
- Reverse Recovery Charge: 170 nc
- Gate Charge: 61 - 143 nC
- Switching Delay Times: t_on = 20.2 ns, t_off = 778 ns
- Package Type: DFN8 5x6
Buy the Buy ON Semiconductor NTMFSCOD9NO4CL Part Number 410LDC Online
Purchase the ON Semiconductor Power MOSFET NTMFSCOD9NO4CL online today to ensure high efficiency in load switching, DC-DC conversion, and power management systems. This device boasts ultra-low Rds(on), high current capacity, and robust dual cooling packaging, making it perfect for demanding industrial and electronic applications. With its lead-free, halogen-free, RoHS-compliant construction, it offers environmental safety and reliability. Swift online ordering guarantees quick delivery, allowing your projects to benefit from superior power switching capabilities with proven durability and efficiency. Trust ON Semiconductor for quality and performance.
Order your ON Semiconductor NTMFSCOD9NO4CL power MOSFET today and enhance your power switching efficiency with reliable, high-current performance.
Frequently Asked Questions
Where can I buy ONSEMI NTMFSC0D9N04CL?
You can click on the BUY or RFQ button to purchase NTMFSC0D9N04CL from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NTMFSC0D9N04CL?
You can download the NTMFSC0D9N04CL datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NTMFSC0D9N04CL?
ONSEMI
