ONSEMI MTP3055VL N-Channel Logic Level MOSFET
The MTP3055VL is a high-speed N-Channel Logic Level MOSFET designed for low voltage switching applications such as power supplies and motor controls. It features faster switching, lower gate charge, and safer drive requirements, making it ideal for high-frequency circuits. With a maximum drain-source voltage of 60V, continuous drain current of 12A, and a junction temperature rating of 175°C, this rugged MOSFET ensures reliable performance. Its internal diode eliminates the need for external transient suppression, delivering efficiency and durability in demanding electronic systems.
ONSEMI MTP3055VL N-Channel Logic Level MOSFET Specifications:
- Drain-Source Voltage: 60 V
- Gate-Source Voltage: ±15 V
- Continuous Drain Current: 12 A
- Pulsed Drain Current: 42 A
- Power Dissipation @ 25°C: 48 W
- Maximum Junction Temperature: 175°C
- Thermal Resistance, Junction-to-Case: 3.13 °C/W
- Thermal Resistance, Junction-to-Ambient: 62.5 °C/W
- Avalanche Energy: 72 mJ
- Drain-Source Breakdown Voltage: 60 V
- Gate Threshold Voltage: 1 - 2 V
- On-Resistance: 0.100 - 0.180 Ω
- Gate Charge: 17 nC
- Switching Delays: Turn-On Delay 20 ns, Turn-Off Delay 30 ns
- Capacitances: Coss 345-570 pF, Crss 30-40 pF
- Diode Forward Voltage: 0.7 V
- Maximum Pulsed Drain-Source Diode Forward Current: 42 A

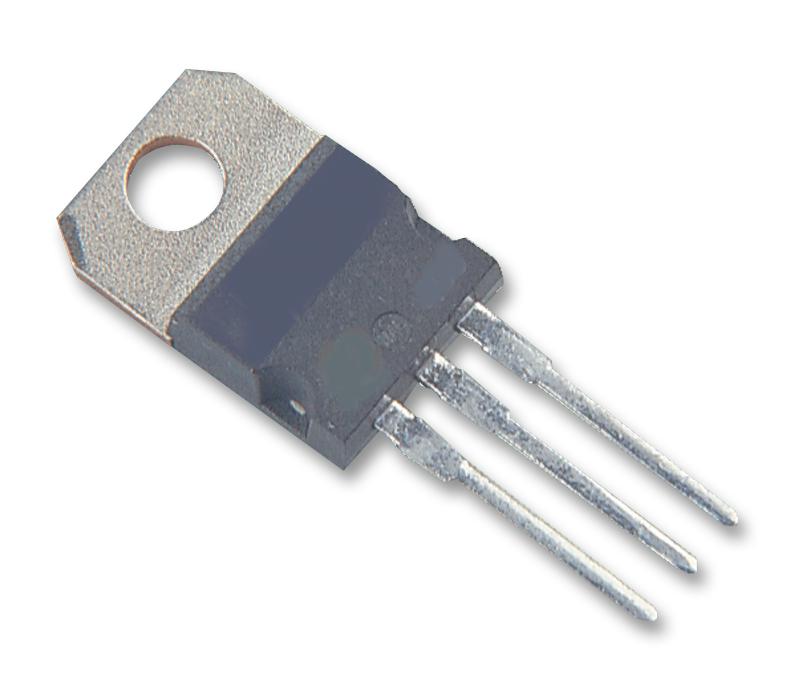

Buy the Buy ON Semiconductor MTP3055VL Part Number MTP3055VL Online
Purchase the ON Semiconductor MTP3055VL online and enjoy fast, efficient power switching capabilities. This robust N-Channel MOSFET features a 60V drain-source voltage, 12A continuous current, and low gate charge, making it ideal for power supplies and motor controls. Its internal diode and high junction temperature rating enhance durability, ensuring long-lasting performance in electronic systems. Easy to drive, with low gate voltage requirements, the MTP3055VL provides reliable operation at high frequencies, perfect for optimizing your high-speed switching applications.
Get ON Semiconductor MTP3055VL today—built for high-speed switching and reliable power management in demanding industrial and electronic applications.
Frequently Asked Questions
Where can I buy ONSEMI MTP3055VL?
You can click on the BUY or RFQ button to purchase MTP3055VL from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MTP3055VL?
You can download the MTP3055VL datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MTP3055VL?
ONSEMI
