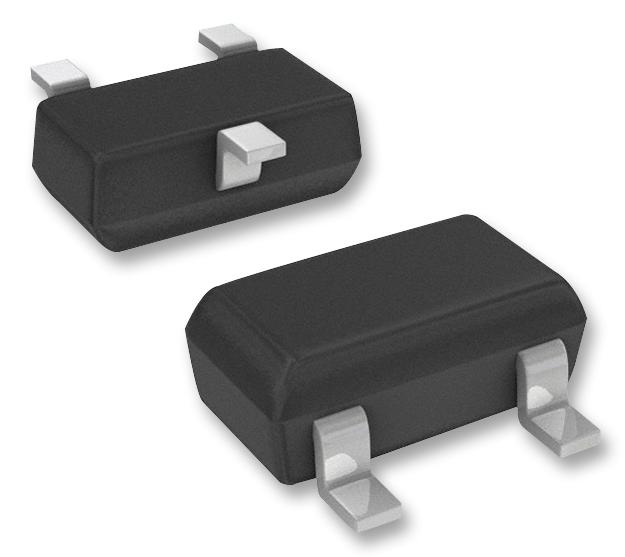

ONSEMI MUN2212T1G Digital Transistor
The MUN2212T1G is a high-efficiency digital transistor device designed to simplify circuit design by integrating a monolithic bias resistor network, reducing component count and system costs. Suitable for automotive and industrial applications, it features a collector-base voltage of 50V, collector-emitter voltage of 50V, and a maximum continuous collector current of 100mA. This Pb-Free, RoHS compliant device offers reliable performance with low power dissipation and excellent thermal characteristics across various packages including SC-59, SOT-23, and SOT-75. Its compact size makes it ideal for space-constrained electronic designs.
ONSEMI MUN2212T1G Digital Transistor Specifications:
- Collector-Base Voltage: 50 Vdc
- Collector-Emitter Voltage: 50 Vdc
- Collector Current: 100 mA (max)
- Input Forward Voltage: 40 Vdc
- Input Reverse Voltage: 10 Vac
- Total Device Dissipation: 230–254 mW depending on package
- Thermal Resistance, Junction to Ambient: 370–540 °C/W depending on package
- Storage Temperature Range: -55 to +150 °C
- Package Types: SC-59, SOT-23, SC-70/SOT-323, SC-75, SOT-723, SOT-1123
- Maximum power dissipation varies from 200 mW to 338 mW with different packages
- Dielectrics and RoHS compliant materials, suitable for automotive and industrial environments
- Designed to reduce system cost, space, and component count, with reliable operation over wide temperature range
- Includes specific device markings for automotive use, qualified under AEC-Q101 standards
Buy the ON Semiconductor MUN2212 – Reliable Digital Transistor for Industrial Applications
Order the ON Semiconductor MUN2212 now to optimize your electronic designs with a space-saving, reliable digital transistor. Featuring integrated bias resistors, it simplifies circuit design, reduces component count, and lowers overall system cost. Suitable for a wide range of industrial and automotive applications, it offers excellent thermal and electrical characteristics, RoHS compliance, and multiple package options. Ensure your projects benefit from proven performance and easy integration—place your order today for fast delivery and competitive prices.
Buy ON Semiconductor MUN2212 now and experience unmatched reliability and performance in space-constrained industrial circuits.
Frequently Asked Questions
Where can I buy ONSEMI MUN2212T1G?
You can click on the BUY or RFQ button to purchase MUN2212T1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MUN2212T1G?
You can download the MUN2212T1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MUN2212T1G?
ONSEMI
