ONSEMI MUN5232DW1T1G Bias Resistor Transistor
The dual NPN bias resistor transistors are designed to replace external bias network components, integrating resistors into a single monolithic device. This reduces system cost, board space, and component count while simplifying circuit design. Suitable for automotive and industrial applications, these transistors are AEC-Q101 qualified, Pb-Free, halogen and BFR free, and RoHS compliant. They feature collector-emitter voltages of 50 V, collector currents up to 100 mA, and include thermal and electrical characteristics optimized for reliability in demanding environments.
ONSEMI MUN5232DW1T1G Bias Resistor Transistor Specifications:
- Collector-Base Voltage: 50 V
- Collector-Emitter Voltage: 50 V
- Collector Current: 100 mA
- Input Forward Voltage: 30 V
- Input Reverse Voltage: 10 V
- Total Device Dissipation: 187 mW (single junction), 250 mW (both junctions heated)
- Thermal Resistance Junction to Ambient: 490-493 °C/W depending on package
- Operating Temperature Range: -55°C to +150°C
- Package Types: SOT-363, SOT-563, SOT-963
- Maximum Power Dissipation varies per package, with derating above 25°C
- Electrical gain (DC current gain): 15 to 30
- Resistor ratio RY/Re: 0.8 to 1.2
- Compliance: AEC-Q101 qualified, RoHS, Pb-Free

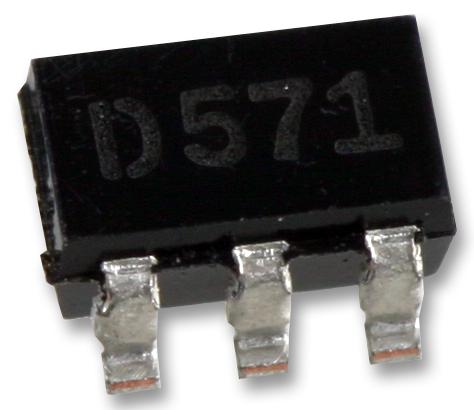

Buy the ON Semiconductor MUN5232DW1 – Reliable Bias Resistor Transistor for Industrial Applications
Secure your supply of bias resistor transistors with ON Semiconductor MUN5232DW1. Engineered for reliability in automotive and industrial environments, these dual NPN transistors feature integrated resistors that simplify circuit design, save board space, and reduce component count. Ideal for replacing external resistor networks, they are AEC-Q101 qualified, RoHS compliant, and Pb-Free, ensuring compliance with industry standards. Purchase online today to enhance your system’s efficiency and reliability with these cost-effective, compact, and high-performance transistors.
Buy ON Semiconductor MUN5232DW1 now and experience unmatched reliability and performance in automotive and industrial circuit designs.
Frequently Asked Questions
Where can I buy ONSEMI MUN5232DW1T1G?
You can click on the BUY or RFQ button to purchase MUN5232DW1T1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MUN5232DW1T1G?
You can download the MUN5232DW1T1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MUN5232DW1T1G?
ONSEMI
