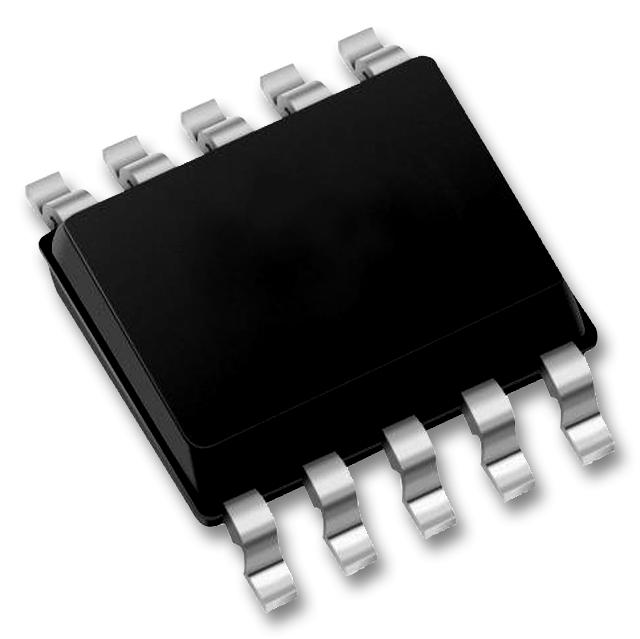

ONSEMI NCV1060BD100R2G High-Voltage Switcher Controller
The NCV106X series integrates a high-voltage fixed frequency current mode controller with a 670 V MOSFET, suitable for automotive high-voltage switcher applications. Featuring soft-start, frequency jittering, short-circuit protection, skip-cycle mode, adjustable peak current, ramp compensation, and a self-supply circuit eliminating the need for an auxiliary winding, these devices support both isolated and non-isolated topologies. They ensure high efficiency, low standby power, and robust protection features, making them ideal for auxiliary and standby power supplies in HEV/EV systems and low-power offline SMPS.
ONSEMI NCV1060BD100R2G High-Voltage Switcher Controller Specifications:
- Power supply voltage: Voo -0.3 to 20 V
- Drain voltage: BVdss 670 V
- Maximum drain current (peak): NCV1060 520 mA at 25°C, NCV1063 1500 mA at 25°C
- Operating junction temperature: -40 to +150°C
- Thermal resistance junction-to-air: SOIC-10 132°C, SOIC-16 104°C
- Switching frequency: 60 kHz (NCV1060) or 100 kHz (NCV1063)
- On-resistance: NCV1060 34 Ω (Typ), NCV1063 11.4 Ω (Typ)
- ESD capability: HBM 2 kV, CDM 1 kV
- Dimensions: SOIC-10 and SOIC-16 packages as per datasheet outline
- Protection features: overvoltage, overcurrent, short-circuit, thermal shutdown
- Efficiency: supports frequency foldback, skip-cycle, low standby power (< 50 mW)
