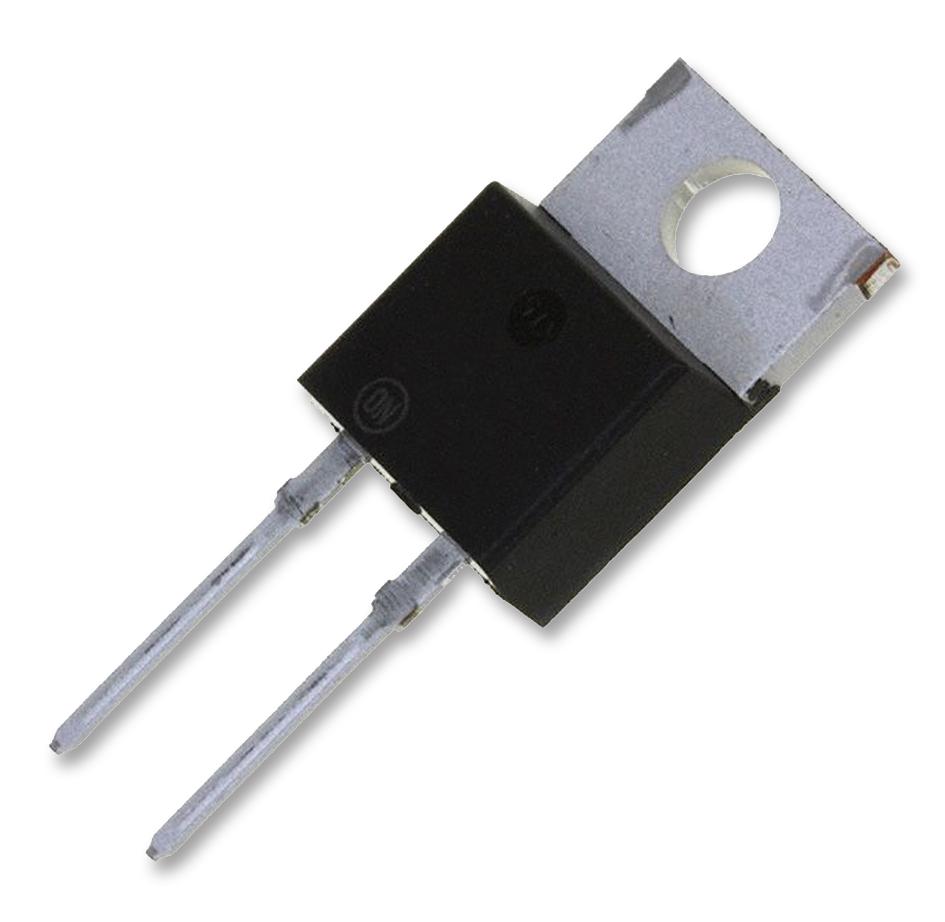

ONSEMI MUR1560G Ultrafast Rectifier Diode
MUR1560G is a high-voltage ultrafast rectifier diode designed for switch-mode power supplies and inverter applications. It features a recovery time of 60 nanoseconds, a maximum junction temperature of 175°C, and a voltage capability up to 600 V. The device offers low forward drop, low leakage current at high temperatures, and is qualified for automotive use under AEC-Q101 standards. Its epoxy molded case ensures durability and solderability, making it suitable for high-speed switching in industrial and automotive electronics.
ONSEMI MUR1560G Ultrafast Rectifier Diode Specifications:
- Maximum Repetitive Reverse Voltage: 600 V
- Maximum Working Peak Reverse Voltage: 600 V
- Maximum Average Rectified Forward Current: 15 A at Tg=150°C
- Peak Repetitive Surge Current: 150 A
- Maximum Instantaneous Forward Voltage: 0.85 V at 15 A, 150°C
- Maximum Reverse Current: 10 mA at 25°C, 500 mA at 150°C
- Recovery Time: 60 ns
- Junction Temperature Range: -55°C to +175°C
- Thermal Resistance Junction-to-Case: 1.5°C/W
- Thermal Resistance Junction-to-Ambient: 73°C/W
- Case: Epoxy Molded, TO-220 FullPak
- Lead Finish: Lead-free, corrosion resistant
- Operating and Storage Temperature Range: -55°C to +175°C
- Device Weight: Approximately 1.9 grams
- Compliance: RoHS, Pb-Free
- Soldering Temperature Max: 260°C for 10 seconds
Buy the ON Semiconductor MUR1560G – Reliable Ultrafast Rectifier Diode for Industrial Applications
Order the ON Semiconductor MUR1560G ultrafast rectifier diode today to ensure high-speed switching and reliable power management in your industrial or automotive systems. Designed with a recovery time of 60 ns and capable of handling up to 600 V, this component offers low forward drop and leakage current for maximum efficiency. Its epoxy molded case guarantees durability and solderability, making it suitable for high-temperature, high-reliability applications. Purchase online now and enhance your electronic design with this industry-leading rectifier diode for robust performance and long-lasting operation.
Get ON Semiconductor MUR1560G today—built for high-speed switching, durability, and automotive reliability.
Frequently Asked Questions
Where can I buy ONSEMI MUR1560G?
You can click on the BUY or RFQ button to purchase MUR1560G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MUR1560G?
You can download the MUR1560G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MUR1560G?
ONSEMI
