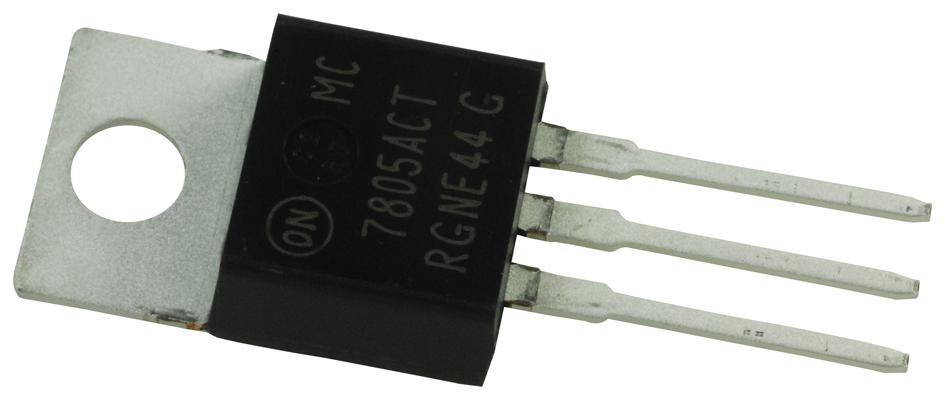

ONSEMI MC7805ACTG Power Regulator
The MC7805ACTG is a fixed 5V positive linear voltage regulator in a 3-pin TO-220 package, designed for local and on-card regulation. It includes internal current limiting, thermal shutdown, and safe area compensation for reliable operation. Capable of delivering up to 1A with a maximum input of 35V, it features a dropout voltage of 2V at full load. No external components are necessary, and it offers output voltage tolerances of 1.5%, 2%, and 4%. Suitable for power management in various electronic systems, operating from 0°C to 125°C with high efficiency.
ONSEMI MC7805ACTG Power Regulator Specifications:
- Output Voltage: 5V (tolerance options of 1.5%, 2%, 4%)
- Maximum Input Voltage: 35V
- Maximum Output Current: 1A
- Dropout Voltage: 2V at 1A
- Operating Temperature Range: 0°C to 125°C
- Package: TO-220 3-pin
- Features: Internal current limiting, thermal shutdown, safe area compensation
- Application: Local and on-card power regulation, power management systems
Buy the ON Semiconductor Series MC7800 Power Regulation: MC7805ACTG
Purchase the ON Semiconductor MC7805ACTG now to ensure stable 5V power supply for your electronic projects. This fixed-voltage linear regulator offers up to 1A current, integrated current limiting, thermal shutdown, and safe area compensation for dependable operation. No external components are needed, simplifying your design. With a wide operating temperature range from 0°C to 125°C and a robust TO-220 package, it is ideal for power management in various applications. Order today for quick delivery and reliable performance.
Buy ON Semiconductor MC7805ACTG now and experience reliable 5V power regulation with high efficiency and no external components required.
Frequently Asked Questions
Where can I buy ONSEMI MC7805ACTG?
You can click on the BUY or RFQ button to purchase MC7805ACTG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MC7805ACTG?
You can download the MC7805ACTG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MC7805ACTG?
ONSEMI
