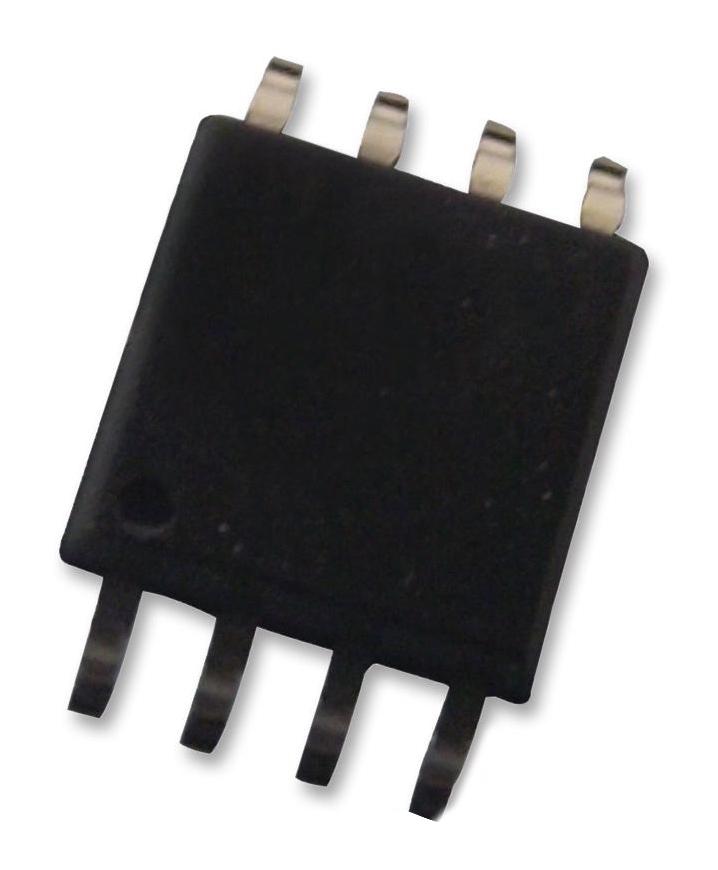

ONSEMI NCD57090CDWR2G High-Current Isolated Gate Driver
High-current isolated gate driver designed for high power applications, supporting a wide input voltage range, galvanic isolation of 5 kVrms, and features like Active Miller Clamp. Suitable for motor control, automotive, industrial power supplies, and solar inverters, it provides reliable, efficient switching with low propagation delay, short circuit protection, and robust insulation. Available in SOIC-8 package, it ensures high electromagnetic immunity, transient robustness, and compliance with industry safety standards, making it ideal for demanding high-voltage, high-current systems requiring galvanic isolation.
ONSEMI NCD57090CDWR2G High-Current Isolated Gate Driver Specifications:
- Isolation Voltage: 5 kVrms
- Peak Output Current: +6.5 A / -6.5 A
- Input Voltage Range: 3.3 V to 20 V, including negative power supply support
- Package: SOIC-8 Wide Body
- UVLO Thresholds: Tight, with adjustable hysteresis
- Propagation Delay: 40-90 ns with typical matching
- Gate Clamp Voltage: 2 V to 17 V, active Miller clamp
- Power Dissipation: 1470 mW in SOIC-8 package
- Operating Temperature Range: -40°C to +125°C
- Conformance: AEC-Q100 qualified, PPAP capable
- EMI Immunity: High transient and electromagnetic immunity
- Certification: RoHS, Halogen and BFR free
Buy the ON Semiconductor NCx57090 – Reliable Isolated Gate Driver for Industrial Applications
Purchase the ON Semiconductor NCx57090CDWR2G today online to ensure your high power systems benefit from superior galvanic isolation, fast switching, and robust protection features. This driver offers an optimal combination of high peak output current, industry-standard safety ratings, and industry compliance for automotive, industrial, and renewable energy applications. With support for wide input voltages, active Miller clamp, and excellent transient immunity, it guarantees reliable operation in demanding environments. Buy now and elevate your system’s efficiency and safety with this trusted, high-performance gate driver.
Order your ON Semiconductor NCx57090CDWR2G high-current isolated gate driver today and enhance your energy systems with dependable, industry-grade performance.
Frequently Asked Questions
Where can I buy ONSEMI NCD57090CDWR2G?
You can click on the BUY or RFQ button to purchase NCD57090CDWR2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCD57090CDWR2G?
You can download the NCD57090CDWR2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCD57090CDWR2G?
ONSEMI
