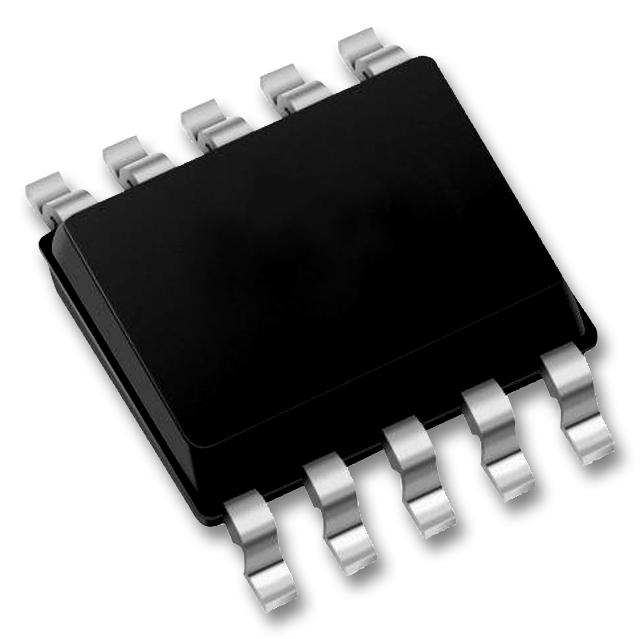

ONSEMI NCL30086BHDR2G LED Lighting Controller
The NCL30086BH is a highly integrated quasi-resonant primary-side controller designed for compact, efficient, smart-dimmable LED drivers. It supports flyback, buck-boost, and SEPIC topologies, offering near-unity power factor correction and tightly regulated LED current without secondary feedback. Features include analog and PWM dimming, robust protections such as over-temperature foldback, over-voltage, short circuit, and brownout protection. Housed in a space-efficient SOIC10 package, it ensures reliable operation over wide temperature ranges with adjustable current fold-back, making it ideal for intelligent LED lighting applications.
ONSEMI NCL30086BHDR2G LED Lighting Controller Specifications:
- Supports flyback, buck-boost, and SEPIC topologies
- Near-unity power factor correction up to 0.99
- Tightly regulated LED current within ±2%
- Supports analog and PWM dimming via DIM pin
- Thermal foldback, over-voltage, over-temperature, short circuit, and brownout protections
- Start-up current: 10 μA typical
- Operating voltage range: 9.4 V to 26 V
- Package: SOIC-10, size comparable to SOIC-8
- Maximum junction temperature: 150°C, operates from -40°C to +125°C
- Current regulation: 300 mA / 500 mA options
- Built-in valley lockout and frequency foldback for efficiency optimization
- Integrates open LED protection and auto-recovery fail-safe features
- Designed for compact, space-efficient lighting solutions
- Supports robust fault management with auto-recovery timer and fault indication
