ONSEMI H11AA1SR2M AC Input Phototransistor
The H11AA1M and H11AA4M are 6-pin DIP AC input phototransistor optocouplers designed for safe electrical isolation and switching applications. Featuring bi-polar emitter input and built-in reverse polarity input protection, these devices comply with safety standards UL1577 and IEC60747-5-5, offering 4,170 VAC for 1 minute and 850 V peak working insulation voltage. Suitable for AC line monitoring, unknown polarity DC sensing, and telephone line interface, they consist of infrared LEDs driving a silicon phototransistor in inverse parallel, ensuring reliable performance in industrial and communication systems, with detailed electrical and mechanical specifications available.
ONSEMI H11AA1SR2M AC Input Phototransistor Specifications:
- Package: DIP 6-pin
- Isolation Voltage: 4,170 VAC for 1 min, 850 V peak working voltage
- Input-to-Output Test Voltage: 1360 V (Method A), 1594 V (Method B)
- Insulation Resistance: > 10^17 ohms at 500 VDC
- Maximum Storage Temperature: -40°C to +125°C
- Maximum Operating Temperature: -40°C to +100°C
- Maximum Junction Temperature: 125°C
- Lead Solder Temperature: 260°C for 10 seconds
- Maximum Power Dissipation: 270 mW
- Emitter Forward Voltage: 1.17-1.50 V at 10 mA
- Collector Break Down Voltage: 30-100 V, Collector-Emitter Leakage: 50 nA
- Input Forward Current: 60 mA, Peak: 1 A, Power Dissipation: 120 mW
- Output Power: 800 mW, Collector Current: 50 mA
- Isolation Capacitance: 0.7 pF
- External Creepage and Clearance: 27 mm
- Compliant with safety and regulatory approvals including UL1577 and IEC standards

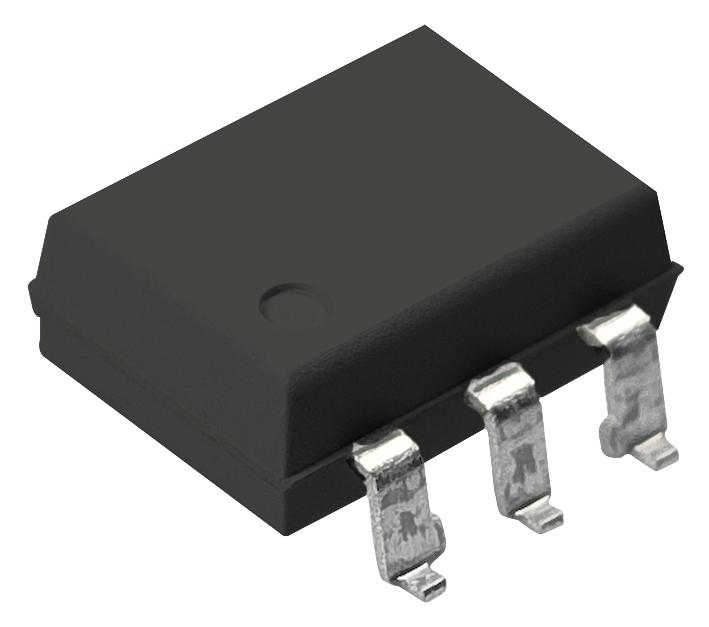

Buy the Fairchild Series H11AA1M AC Input Phototransistor: H11AA1SR2M
