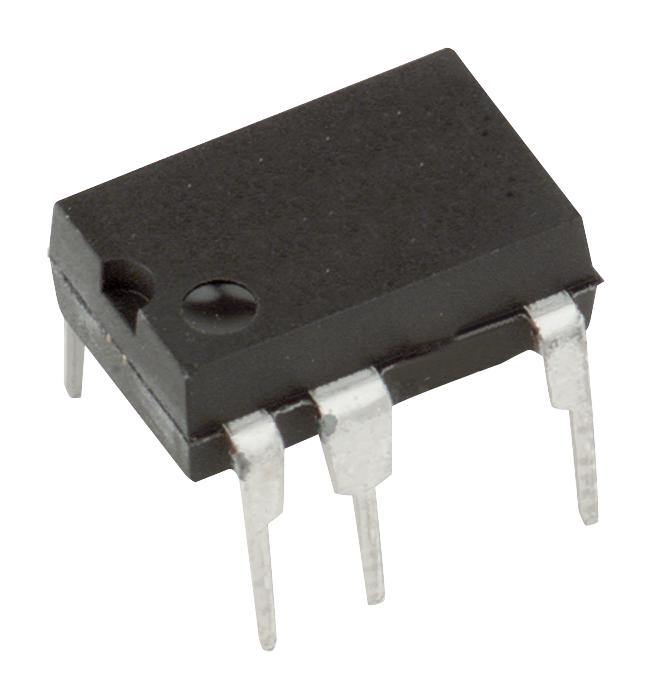

ONSEMI NCP1075BBP130G High-Voltage Switcher Controller
The NCP1075BBP130G is an advanced high-voltage switcher controller designed for efficient off-line power supplies and industrial applications. Featuring a built-in 700V MOSFET, it integrates soft-start, frequency jittering, short-circuit, over-voltage protection, skip-cycle operation, and dynamic self-supply, enabling low power standby modes below 50mW. It operates at 65, 100, or 130 kHz, with multiple peak current options, and is suitable for power meters, home appliances, and industrial SMPS with automatic burst and foldback modes for enhanced efficiency and safety.
ONSEMI NCP1075BBP130G High-Voltage Switcher Controller Specifications:
- Power supply voltage: Voc -0.3 to 20 V
- Drain-Source Breakdown Voltage: 700 V
- Peak Drain Current during saturation: 36 A
- Operating frequency: 65, 100, 130 kHz
- Built-in 700 V MOSFET with Rps(on): 13.5 to 48 Q depending on model
- Thermal resistance junction-to-air: 0.36 to 1.0 °C/W
- Maximum junction temperature: 150°C
- Storage temperature range: -60 to +150°C
- ESD capability: 2 kV (HBM), 1 kV (CDM)
- Soft-start duration: 10 ms
- Frequency jittering: ±6% of nominal frequency
- VCC management: Voc start at 80-89V, stop at 61-69V
- Protection features: Over-voltage, brown-out, short-circuit, over-power
- Efficiency: designed for advanced off-line power supplies with light load foldback and skip modes
- Package: PDIP-8, issues for high reliability and thermal management
Buy the ON Semiconductor NCP1075BBP130G – Reliable Switcher for Industrial Applications
Order the ON Semiconductor NCP1075BBP130G online today to enhance your industrial power supply designs. This high-voltage switcher controller features a robust built-in 700V MOSFET, soft-start, frequency jittering, and protection functions ensuring efficient operation across diverse applications. With multiple frequency and peak current options, it excels in SMPS, home appliances, and industrial power meters, offering excellent light load efficiency through frequency foldback and skip-cycle modes. Invest today for reliable, high-performance power solutions with advanced safety features.
Get ON Semiconductor NCP1075BBP130G today—built for precision, efficiency, and long-lasting durability in industrial power supplies.
Frequently Asked Questions
Where can I buy ONSEMI NCP1075BBP130G?
You can click on the BUY or RFQ button to purchase NCP1075BBP130G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCP1075BBP130G?
You can download the NCP1075BBP130G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCP1075BBP130G?
ONSEMI
