ONSEMI NCP1236BD65R2G Current Mode Controller
The NCP1236BD65R2G is a high-performance fixed-frequency current mode controller designed for flyback converters and power supplies. Featuring Dynamic Self-Supply (DSS), it simplifies auxiliary supply design and enhances light load efficiency through frequency foldback and skip mode functionality. The device offers adjustable overcurrent and overpower protections, a soft-start feature, and a latch-off input for severe fault conditions like overtemperature. Its advanced high-voltage circuitry ensures reliable startup and brown-out detection, making it ideal for efficient, safe, and low-part-count power supplies in consumer electronics, adapters, and battery chargers.
ONSEMI NCP1236BD65R2G Current Mode Controller Specifications:
- Operating Frequency: 65 kHz or 100 kHz
- Voltage Range (Vcc): up to 28 V, overvoltage protection at typically 26.5 V
- High Voltage Pin: accepts up to 500 V, with brown-out detection
- Current Capability: Peak source/sink drive +500 mA
- Driver Voltage Clamp: below 16 V to ensure MOSFET compatibility
- Soft-Start Duration: 4.0 ms
- Temperature Range: -40°C to +125°C
- Maximum Junction Temperature: 150°C
- Thermal Resistance (SOIC-7): 162°C/W junction-to-air
- Protection Features: Overcurrent, overvoltage, brown-out, temperature shutdown
- Frequency Jittering: ±8%, with triangle wave modulation at 125 Hz
- Protection Modes: Latched or autorecovery with adjustable fault timers, soft-start, and latch-off input
- Oscillator: 65 kHz or 100 kHz options, with jittering for EMI mitigation
- Input Pins: Feedback, Current Sense, Latch, HV, and others for control and protection
- Application: AC-DC adapters, battery chargers, consumer power supplies, auxiliary power
- Package: SOIC-7 (CASE 751U)

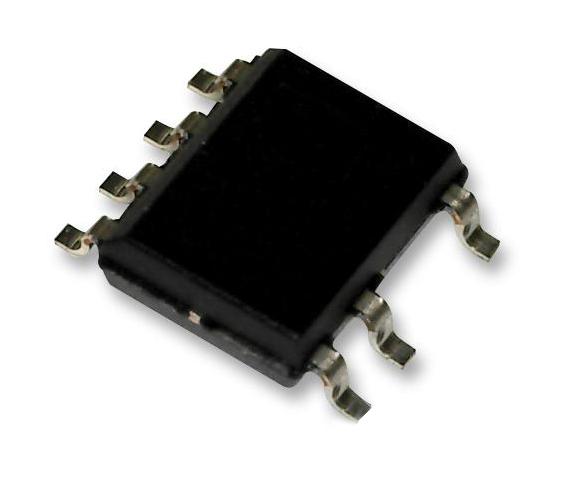

Buy the ON Semiconductor Series NCP1236 Fixed Frequency Current Mode Controller: NCP1236BD65R2G
