ONSEMI NCP160AFCS330T2G Low Noise Voltage Regulator
The NCP160 is a low noise, high PSRR linear regulator capable of providing 250 mA output current. Designed for RF and analog circuit applications, it offers ultra-low noise, high power supply rejection ratio, low quiescent current, and very good load and line transient responses. Available in small CSP and XDFN packages, it works with ceramic capacitors and includes protections against overcurrent, short circuits, and overheating. Ideal for battery-powered devices like smartphones, tablets, and wireless LAN equipment, it ensures stable and efficient voltage regulation.
ONSEMI NCP160AFCS330T2G Low Noise Voltage Regulator Specifications:
- Operating Input Voltage Range: 1.9 V to 5.5 V
- Output Voltage Options: 1.8 V to 5.14 V (±2% accuracy)
- Output Current: 250 mA
- Dropout Voltage: 80 mV at 250 mA
- Quiescent Current: 18 μA (typical), Standby Current: 0.1 μA
- High PSRR: 98 dB at 20 mA, f= 1 kHz
- Noise: 10 μVRMS
- Package Options: 0.35P CSP, 0.65 mm x 0.65 mm; XDFN-4 0.65 mm x 0.65 mm x 0.4 mm; WLCSP4 0.65 mm x 0.65 mm x 0.33 mm
- Input Capacitor: 1 μF ceramic, low ESR
- Output Capacitor: 1 μF ceramic, stable with low ESR (<2 Ω), no tantalum
- Protection: Overcurrent, short circuit, overheating device shutdown
- ESD Protection: 2000 V (Human Body Model), 200 V (Machine Model)
- Thermal Resistance: CSP4 Package 108 °C/W, XDFN4 198.1 °C/W
- Temperature Operating Range: -40°C to 125°C
- Standby and Enable Function: Pin controlled, low current pull-down

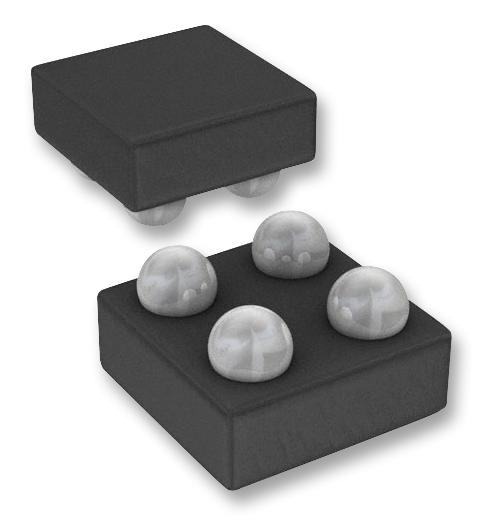

Buy the Buy ON Semiconductor NCP160AFCS330T2G Part Number 330T2G Online
Order the ON Semiconductor NCP160AFCS330T2G online today and secure a high-performance, ultra-low noise voltage regulator designed for RF, high-precision analog circuits, and battery-powered devices. Featuring 250 mA output current, high PSRR, low dropout, and minimal quiescent current, it provides stable voltage regulation in compact CSP and XDFN packages. Perfect for smartphones, tablets, Wi-Fi modules, and portable electronics, this device ensures reliable operation with protections against overloads and overheating. Buy now for a durable, efficient power solution suited to demanding high-frequency applications.
Get ON Semiconductor NCP160AFCS330T2G today—built for precision, ultra-low noise, and long-lasting durability in portable RF and analog applications.
Frequently Asked Questions
Where can I buy ONSEMI NCP160AFCS330T2G?
You can click on the BUY or RFQ button to purchase NCP160AFCS330T2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCP160AFCS330T2G?
You can download the NCP160AFCS330T2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCP160AFCS330T2G?
ONSEMI
