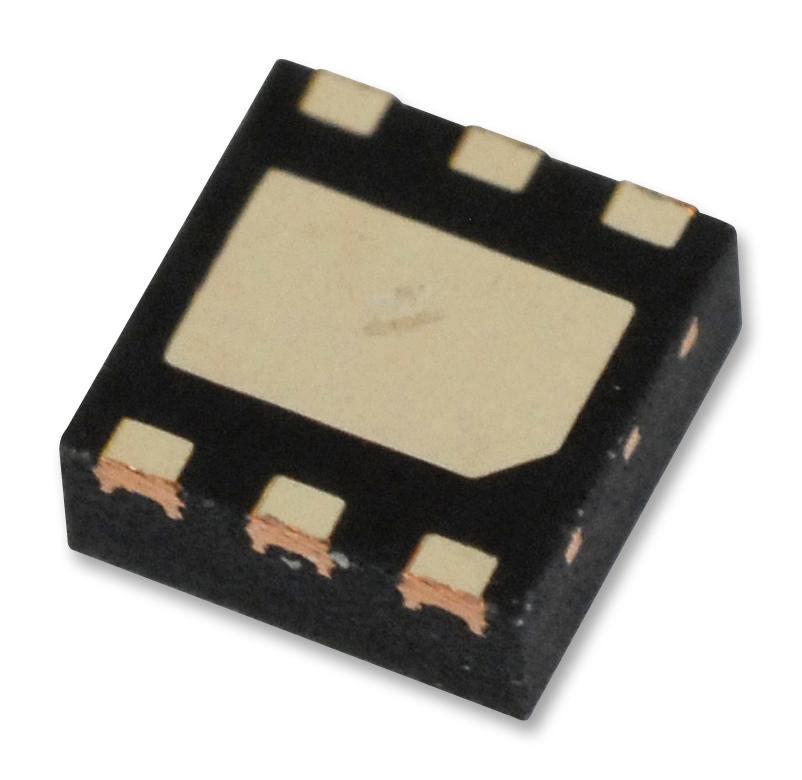

ONSEMI NCP606MNADJT2G Low Dropout Voltage Regulator
The NCP606 is a low-noise, 500mA CMOS LDO regulator designed for space-constrained and portable battery-powered applications. It features an adjustable output from 1.25V to 5.0V, with high PSRR, thermal and short-circuit protection, and enhanced ESD ratings of 4kV HBM. Packaged in a compact DFN6 3x3.3 mm footprint, it operates with ceramic or tantalum capacitors. The NCP606 is ideal for sensitive electronics like cameras, notebooks, and portable instrumentation requiring reliable power regulation and minimal noise.
ONSEMI NCP606MNADJT2G Low Dropout Voltage Regulator Specifications:
- Output Voltage Range: 1.25 V to 5.0 V (adjustable with external resistors)
- Output Current: 500 mA
- Dropout Voltage: 150 mV at 500 mA load
- Line Regulation: 10 mV from (Vout + 0.5 V) to 6 V
- Load Regulation: 30 mV over 1 mA to 500 mA load
- ESD Protection: 4 kV Human Body Model, 200 V Machine Model
- Input Voltage Range: 1.5 V to 6 V
- Quiescent Current: 145-180 μA
- Thermal Resistance, Junction-to-Ambient: 75 °C/W
- Package: DFN6 3x3.3 mm
- Timing: Turn-on time approximately 6 μs at 1.25 V output
- Operating Temperature Range: -40°C to 125°C
- Noise Voltage: 50 Vrms (10 Hz to 100 kHz)
Buy the ON Semiconductor Series NCP606 Voltage Regulator: NCP606MNADJT2G
Upgrade your electronic projects with the ON Semiconductor Series NCP606MNADJT2G today. This high-performance low dropout voltage regulator provides adjustable output from 1.25V to 5.0V, with a 500mA current capacity, ideal for portable or space-constrained applications. Designed with enhanced ESD protection, it guarantees durability in extreme conditions. Its compact DFN6 package simplifies integration into your designs. Achieve high efficiency, minimal noise, and reliable power supply with just a few clicks—perfect for sensitive electronics like cameras, notebooks, and battery-powered devices.
Order your ON Semiconductor Series NCP606MNADJT2G today and ensure your portable devices operate with reliable, low-noise power regulation.
Frequently Asked Questions
Where can I buy ONSEMI NCP606MNADJT2G?
You can click on the BUY or RFQ button to purchase NCP606MNADJT2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCP606MNADJT2G?
You can download the NCP606MNADJT2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCP606MNADJT2G?
ONSEMI
