ONSEMI NCP698SQ18T1G Low Dropout Linear Regulator
The NCP698 series is a CMOS ultra-low quiescent current voltage regulator designed for battery-powered applications like handheld devices, cameras, and communication equipment. Offering a fixed output voltage with high accuracy, it features a low-dropout design, enable control pin, and requires minimal external components, making it ideal for portable electronics requiring efficient power management. Its small package design supports easy integration, and it operates over a wide temperature range, ensuring reliable performance in various environments with outputs ranging from 1.3 V to 5.0 V. Safe for lead-free manufacturing, it provides stable voltage regulation with low noise and current consumption.
ONSEMI NCP698SQ18T1G Low Dropout Linear Regulator Specifications:
- Maximum Input Voltage: 6.0 V
- Output Voltage Range: 1.3 V to 5.0 V in 100 mV steps
- Quiescent Current: 2.5 μA typical
- Output Voltage Accuracy: ±2.0%
- Dropout Voltage: 200 - 1050 mV depending on voltage
- Operating Temperature Range: -40°C to 85°C
- Output Capacitor: Minimum 0.1 μF ceramic or tantalum

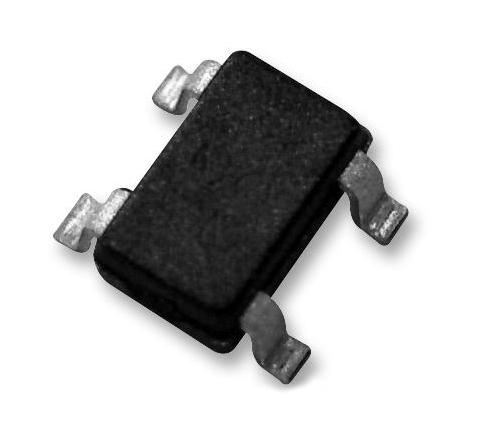

- Package: SC82-AB surface mount
- Thermal Resistance Junction-to-Ambient: 235°C/W
- Enable Pin: Active high, with threshold voltage Vih range
- Transient Response: Stable with low ESR capacitors
- Certified: Pb-Free, RoHS compliant
- Maximum Power Dissipation: Up to 250 mW at 25°C
- Maximum Junction Temperature: 150°C
Buy the Buy ON Semiconductor NCP698 Series Voltage Regulator Part Number NCP698SQ18T1G Online
Purchase the ON Semiconductor NCP698SQ18T1G low quiescent current voltage regulator online today. Perfect for handheld, camera, and communication devices, it offers ultra-low dropout, high accuracy, and stable performance over wide temperatures. Its small SC82 surface-mount package and minimal external components make integration straightforward, ensuring efficient power management. Ideal for battery-powered applications that demand reliable, low-noise voltage regulation with enable control, this regulator guarantees optimal operation and energy savings for portable electronics and industrial equipment. Buy now for secure and quick delivery.
Order your ON Semiconductor NCP698SQ18T1G series low dropout voltage regulator today and ensure dependable power regulation for your portable and battery-powered projects.
Frequently Asked Questions
Where can I buy ONSEMI NCP698SQ18T1G?
You can click on the BUY or RFQ button to purchase NCP698SQ18T1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCP698SQ18T1G?
You can download the NCP698SQ18T1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCP698SQ18T1G?
ONSEMI
