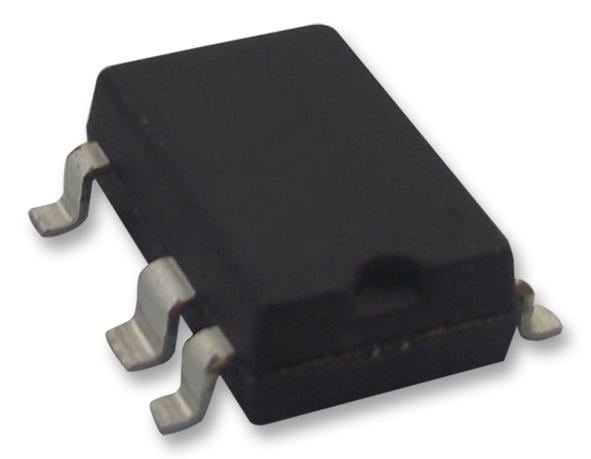

ONSEMI 6N137SDM Logic Gate Optocoupler
The ONSEMI 6N137SDM is a single-channel optocoupler that combines an AlGaAS LED with a high-speed photo-detector logic gate. It's ideal for ground loop elimination, LSTTL to TTL conversion, and data multiplexing. The device offers a fan-out of 8 over a wide temperature range and incorporates a noise shield for enhanced common mode rejection. Its safety and insulation ratings make it suitable for various industrial applications requiring electrical isolation.
ONSEMI 6N137SDM Logic Gate Optocoupler Specifications:
- Very High Speed: 10 MBit/s
- Superior CMR: 10 kV/µs
- Fan-out: 8 Over -40°C to +85°C
- Logic Gate Output: Yes
- Strobable Output: Yes
- Wired OR-open Collector: Yes
- Safety and Regulatory Approvals: UL1577, 5,000 VACRMS for 1 Minute – DIN EN/IEC60747-5-5
- Applications: Ground Loop Elimination, LSTTL to TTL, Data Multiplexing, Switching Power Supplies, Pulse Transformer Replacement, Computer-peripheral Interface
- Input-to-Output Test Voltage Method A: < 150 VRMS
- Input-to-Output Test Voltage Method B: < 450 VRMS
- Maximum Working Insulation Voltage: 890 Vpeak
- Highest Allowable Over-Voltage: 6,000 Vpeak
- External Creepage: ≥8.0 mm
- External Clearance: ≥7.4 mm
- External Clearance (for Option TV): ≥10.16 mm
- Distance Through Insulation: ≥0.5 mm
- Case Temperature: 150 °C
- Input Current: 200 mA
- Output Power: 300 mW
- Insulation Resistance: > 109 Ω
