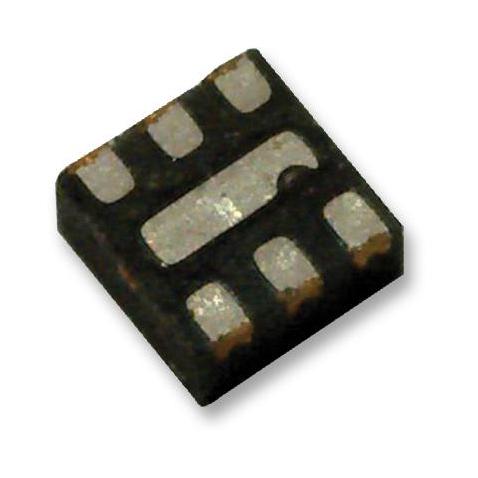

ONSEMI NCP711BMT500TBG Low Dropout Regulator
The NCP711 is a highly efficient CMOS low dropout regulator designed for up to 18 V input voltage and 100 mA output current. With a quiescent current of just 1 WA, it is ideal for battery-powered, always-on systems. It offers low dropout of 215 mV at 100 mA, adjustable or fixed output voltages from 1.2 V to 17 V, and includes features like built-in soft start, over-current, and thermal shutdown protections. Devices are available in small TSOP-5 and WDFN-6 packages, with options for power good indicator and low shutdown current.
ONSEMI NCP711BMT500TBG Low Dropout Regulator Specifications:
- Operating Input Voltage Range: 2.7 V to 18 V
- Output Voltage: 1.2 V to 17 V
- Maximum Output Current: 100 mA (source 140 mA peak)
- Quiescent Current: 1 WA typical
- Dropout Voltage: 215 mV typical at 100 mA
- Temperature Range: -40°C to +125°C
- Voltage Accuracy: ±1%
- Enable Threshold: Ven rising 0.7 V to 1.05 V, hysteresis 0.01 V
- Power Good Output: High when regulation is maintained, low on fail (Version B)
- Protection: Over-current, thermal shutdown, short-circuit protection
- Capacitors: Stable with small ceramic capacitors (1 μF)
- Package Options: TSOP-5, WDFN-6 (2x2)
- Includes soft start circuit to reduce inrush current
- RoHS and Pb-free compliant
Buy the ON Semiconductor NCP711 - Reliable Low Dropout Regulator for Industrial Applications
Purchase the ON Semiconductor NCP711 online today and benefit from a highly efficient, low dropout voltage regulator designed for industrial and consumer applications. This device provides ultra-low quiescent current, adjustable or fixed output voltages from 1.2 V to 17 V, and features built-in protections including over-current, thermal shutdown, and short circuit. Its small, surface-mount packages like TSOP-5 and WDFN-6 ensure easy integration into compact designs. Perfect for battery-powered, always-on systems requiring stable and reliable power regulation under demanding conditions.
Buy ON Semiconductor NCP711 now and experience unmatched reliability and performance for your low-voltage power regulation needs.
Frequently Asked Questions
Where can I buy ONSEMI NCP711BMT500TBG?
You can click on the BUY or RFQ button to purchase NCP711BMT500TBG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCP711BMT500TBG?
You can download the NCP711BMT500TBG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCP711BMT500TBG?
ONSEMI
