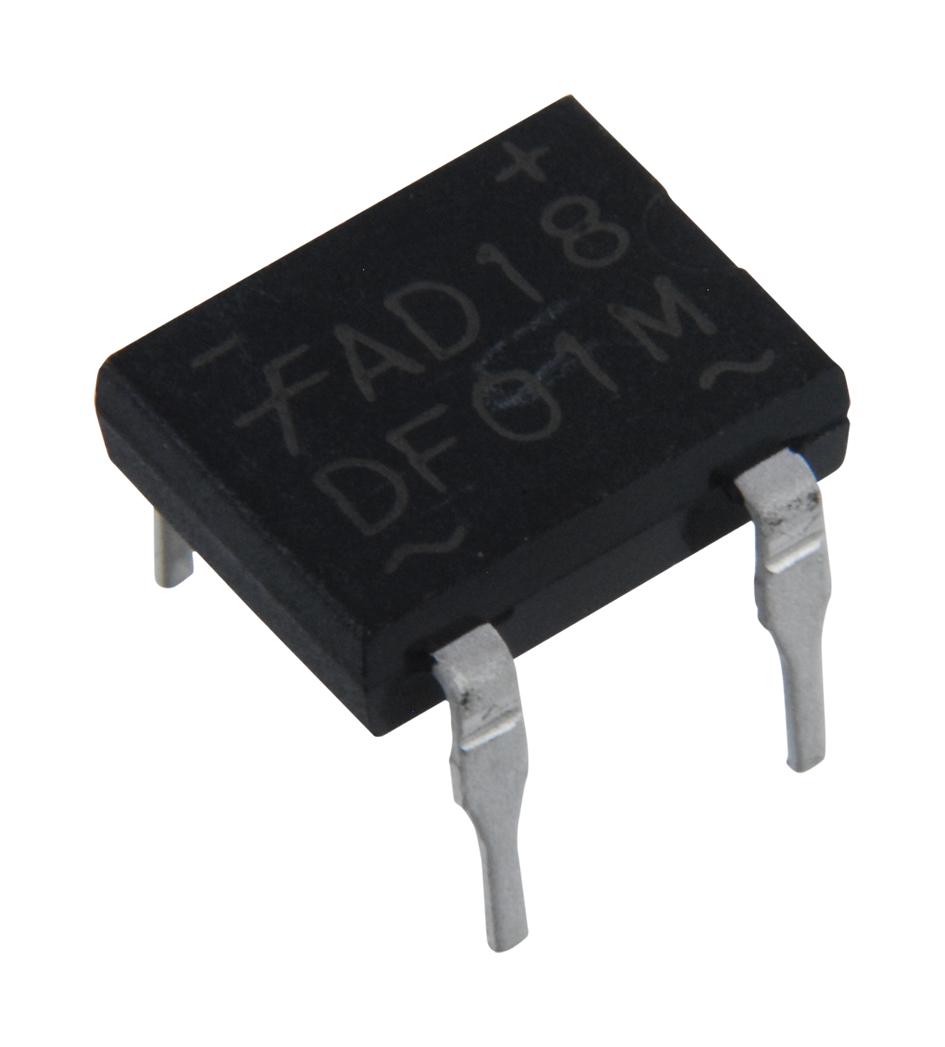

ONSEMI DF01M Bridge Rectifier
The DF01M is a 1.5A bridge rectifier featuring a glass-passivated junction. It is a Schottky rectifier known for high reverse voltage tolerance of 200V. Designed for general-purpose applications, it provides low leakage and reliable performance in various electronic circuits, including mains rectification. Suitable for power supplies, converters, and industrial electronic systems, this diode ensures efficient current flow, minimal power loss, and robust operation under demanding conditions. Its compact form factor and high surge overload rating make it ideal for diverse industrial and commercial electronic projects.
ONSEMI DF01M Bridge Rectifier Specifications:
- Maximum Repetitive Reverse Voltage: 200 V
- Maximum RMS Bridge Input Voltage: 140 V
- DC Reverse Voltage at Rated IR: 200 V
- Average Rectified Forward Current: 1.5 A
- Peak Forward Surge Current: 50 A (8.3 ms single half-sine wave)
- Storage Temperature Range: -55°C to +150°C
- Operating Junction Temperature: -55°C to +150°C
- Power Dissipation: 3.1 W
- Thermal Resistance, Junction-to-Ambient: 40 °C/W
- Forward Voltage, per Element: 1.1 V (IF=1.0A)
- Reverse Current, at 125°C: 500 µA
- Physical Dimensions: 8.51 mm x 8.05 mm x 6.50 mm
- Package: DIP 6.5 mm width
Buy the ON Semiconductor DF01M – Reliable Bridge Rectifier for Industrial Applications
Get the ON Semiconductor DF01M bridge rectifier now available online. This 1.5A, 200V high-reliability diode offers low leakage, robust operation, and excellent surge overload capabilities. Its glass-passivated junction ensures durability and high performance in power supply, converter, and industrial electronic systems. With compact size and professional-grade specifications, this rectifier guarantees efficient current flow and minimal power loss, making it the ideal choice for manufacturers and technicians aiming for quality and reliability in their designs.
Order your ON Semiconductor DF01M high-current bridge rectifier today and ensure dependable power performance for your industrial projects.
Frequently Asked Questions
Where can I buy ONSEMI DF01M?
You can click on the BUY or RFQ button to purchase DF01M from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part DF01M?
You can download the DF01M datasheet or visit the ONSEMI website for support.
Who is the manufacturer of DF01M?
ONSEMI
