ONSEMI NCV8135BMT040TBG Low Dropout Regulator
The NCV8135 is a 500 mA very low dropout regulator featuring an NMOS pass transistor and a separate bias supply voltage. Designed for noise-sensitive and space-constrained applications, it provides stable, accurate output voltage with low noise, and is suitable for automotive, consumer, and industrial equipment, including battery-powered devices, smartphones, and cameras. It offers low dropout voltage, high accuracy, and stable operation with ceramic capacitors, making it ideal for point-of-load regulation, ensuring efficient and reliable performance in various environments.
ONSEMI NCV8135BMT040TBG Low Dropout Regulator Specifications:
- Input Voltage Range: 0.4 V to 5.5 V
- Output Voltage: 0.4 V up to 500 mA
- Dropout Voltage: Typ. 53 mV at 500 mA
- Bias Voltage Range: 2.5 V to 5.5 V
- Maximum Junction Temperature: 125°C
- Thermal Resistance (Junction-to-Air): 97°C/W
- Output Capacitors: 10 uF to 22 μF ceramic, stable with parallel capacitors
- Enable Input Threshold: 0.4 V Low, 0.9 V High
- Current Limit: 600 to 1200 mA
- Quiescent Bias Current: Typ. 35 μA
- ESD Capability: 2000 V Human Body Model
- Thermal Shutdown: 160°C activation threshold
- Package: 2 mm x 2 mm, WDFN6

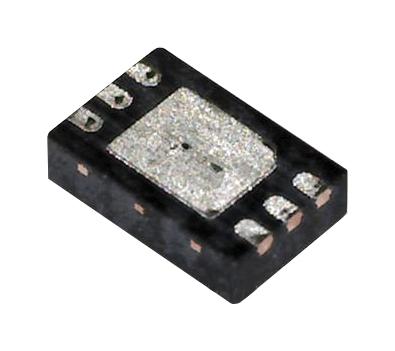

Buy the ON Semiconductor NCV8135 – Reliable Low Dropout Regulator for Industrial Applications
Purchase the ON Semiconductor NCV8135 online today—this low dropout regulator provides 500mA current with high accuracy, low noise, and excellent thermal stability. Its compact WDFN6 package and stable ceramic capacitor operation make it ideal for battery-powered devices, automotive, and industrial applications. Designed for space-efficient designs, the NCV8135 ensures reliable voltage regulation with minimal power loss and thermal protection features. Enhance your electronic projects with this efficient, robust regulator available now for quick online ordering and fast delivery.
Get ON Semiconductor NCV8135 today—built for precision, low noise, and long-lasting durability in your electronic systems.
Frequently Asked Questions
Where can I buy ONSEMI NCV8135BMT040TBG?
You can click on the BUY or RFQ button to purchase NCV8135BMT040TBG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCV8135BMT040TBG?
You can download the NCV8135BMT040TBG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCV8135BMT040TBG?
ONSEMI
