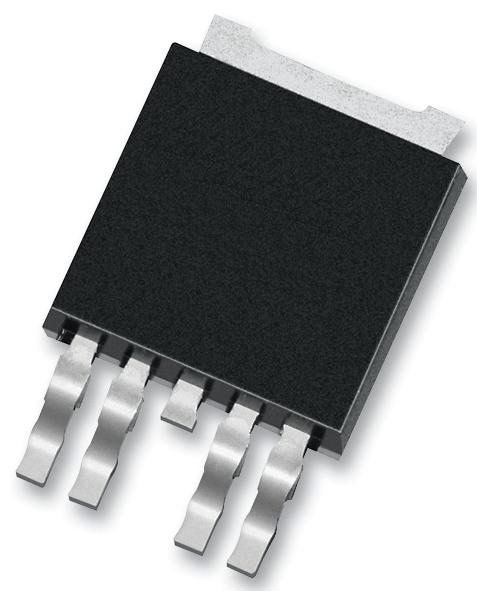

ONSEMI NCV8775CDT33RKG Low Dropout Regulator
The NCV8775C is a highly integrated 350mA low dropout regulator designed for microprocessor applications, offering ultra-low quiescent current of 19µA, ideal for battery-powered systems. Featuring protection functions like current limit and thermal shutdown, it supports output voltages of 3.3 V and 5 V with ±2% accuracy. Its robust design allows operation up to 40 V input, making it suitable for severe automotive and industrial environments. The regulator includes an integrated reset with adjustable delay, ensuring reliable microcontroller operation during power-up and power-down sequences. Compact packages DPAK-5 and D2PAK-5 facilitate easy implementation in space-constrained systems, with thermal management options for high-power dissipation scenarios.
ONSEMI NCV8775CDT33RKG Low Dropout Regulator Specifications:
- Output Voltage Options: 3.3 V and 5 V
- Output Voltage Accuracy: ±2%
- Maximum Output Current: 350 mA
- Quiescent Current: typ 19µA, max 28µA
- Input Voltage Range: up to 40 V
- Protection: Current limit, thermal shutdown
- Reset Delay: Adjustable via external capacitor
- Package Types: DPAK-5, D2PAK-5
- Thermal Resistance (Junction-to-Air): 53.5°C/W (DPAK-5), 53.3°C/W (D2PAK-5)
- Maximum Junction Temperature: 150°C
- ESD Protection: 4 kV (Human Body Model), 1 kV (Charged Device Model)
- Power Dissipation (DPAK-5): up to 2.35 W at 25°C ambient
- Compliance: AEC-Q100 Grade 1, Pb-Free
Buy the On Semiconductor Series NCV8775 Low Dropout Regulator: NCV8775CDT33RKG
Purchase the On Semiconductor Series NCV8775C low dropout regulator today online and benefit from its ultra-low quiescent current, robust protection features, and wide input voltage range. Perfect for microprocessor power supplies, automotive applications, and space-constrained designs, this 350mA regulator includes an integrated reset delay, thermal shutdown, and current limiting. Easy to implement with DPAK-5 and D2PAK-5 packages, it guarantees stable operation under severe environmental conditions. Order now to ensure reliable power management for your critical electronic systems and enjoy quick delivery and professional support.
Order your On Semiconductor Series NCV8775C 350mA low dropout regulator today and ensure your microprocessor or automotive system operates reliably with integrated reset and protection features.
Frequently Asked Questions
Where can I buy ONSEMI NCV8775CDT33RKG?
You can click on the BUY or RFQ button to purchase NCV8775CDT33RKG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NCV8775CDT33RKG?
You can download the NCV8775CDT33RKG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NCV8775CDT33RKG?
ONSEMI
