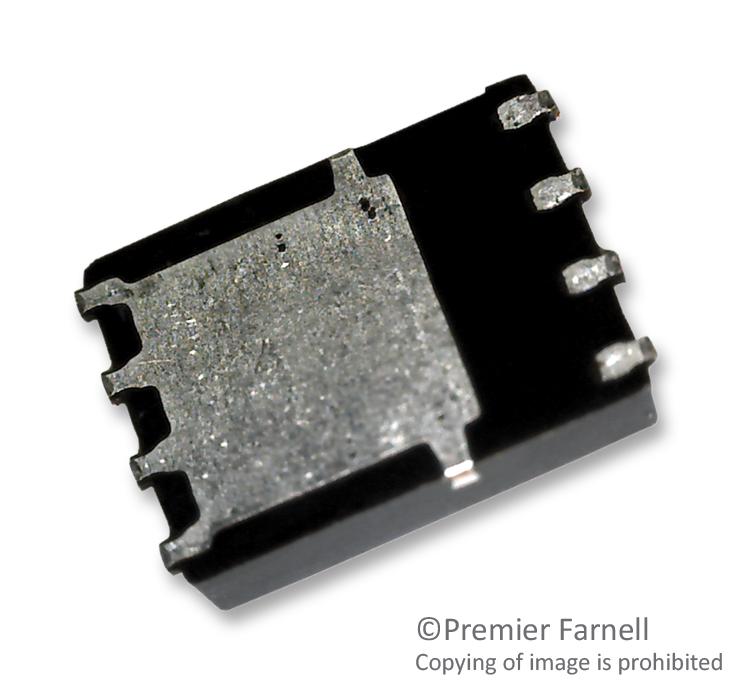

ONSEMI NTMFS08N004C Power MOSFET
This high-performance N-Channel Shielded Gate PowerTrench MOSFET is designed for reliable operation in industrial applications such as DC-DC converters, motor drives, and solar systems. With a maximum drain-source voltage of 80 V and a continuous drain current of 126 A at 25°C, it features low on-resistance and optimized switching performance. Its robust package and Compliance with RoHS standards make it suitable for demanding electronic power solutions requiring efficient, safe, and durable MOSFET components.
ONSEMI NTMFS08N004C Power MOSFET Specifications:
- Drain to Source Voltage: 80 V
- Gate to Source Voltage: ±20 V
- Continuous Drain Current at 25°C: 126 A
- Power Dissipation at 25°C: 125 W
- Maximum Junction Temperature: -55°C to +150°C
- On Resistance (Vgs = 10 V): 4.0 mΩ max
- Gate Threshold Voltage: 2.0 to 4.0 V
- Thermal Resistance, Junction to Case: 1.0 °C/W
- Thermal Resistance, Junction to Ambient: 50 °C/W
- Pulse Energy (Single Pulse): 486 mJ
- Operating & Storage Junction Temperature Range: -55°C to +150°C
- RoHS Compliant
- Package: Power 56 (JEDEC MO-240, Issue A, Vari. AA)
Buy the ON Semiconductor NTMFS08N004C – Reliable Power MOSFET for Industrial Applications
Purchase the ON Semiconductor NTMFS08N004C power MOSFET online today and enhance your industrial power systems. Designed for high current handling and low Rds(on), this device ensures efficient power management in applications like DC-DC converters, motor drives, and solar inverters. Its robust packaging and RoHS compliance guarantee durability and environmentally friendly operation. Secure your supply of this high-performance component now to improve the reliability and efficiency of your electronic systems, backed by ON Semiconductor's advanced technology and manufacturing standards.
Buy ON Semiconductor NTMFS08N004C now and experience unmatched reliability and performance for demanding power electronics.
Frequently Asked Questions
Where can I buy ONSEMI NTMFS08N004C?
You can click on the BUY or RFQ button to purchase NTMFS08N004C from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NTMFS08N004C?
You can download the NTMFS08N004C datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NTMFS08N004C?
ONSEMI
