ONSEMI NIS6150MT1TXG Electronic Fuse
The NIS6150 is a cost-effective, resettable electronic fuse designed for USB and automotive applications. It protects circuits from overvoltage, reverse current, and thermal faults while offering adjustable current limits, fast response overvoltage clamp, and integrated monitoring. Suitable for USB 2.0/3.0/3.1, automotive infotainment, SSDs, and motherboards, it features thermal shutdown, reverse current protection, and both latching and auto-retry options. Its compact WDFNW10 package ensures reliable performance in demanding environments, with compliance to RoHS, halogen, and BFR standards for eco-friendly operation.
ONSEMI NIS6150MT1TXG Electronic Fuse Specifications:
- Input Voltage Operating: 0.3 to +10 V
- Transient V: 0.3 to +10 V
- Output Voltage Operating: 0.3 to +20 V
- Max V on ILIM: 0.3 to +20 V
- Voltage on Enable Pin: -0.3 to +5 V
- Voltage on FLAG: 0.3 to 6 V
- ESD ESD Human Body Model: 4.2 kV
- Charge Device Model: 1 kV
- Thermal Resistance Junction-to-Air: 95°C/W
- Operating Ambient Temp: -40 to 125°C
- Thermal Shutdown Temperature: 150-175°C
- Maximum Power Dissipation: 1.3 W
- Max Reverse Voltage Drop: 100 mV
- Current Limit: 1.2 A (typical)
- Total Device Bias Current: 300-800 μA
- RoHS, Halogen-Free, BFR-Free, Pb-Free compatibility

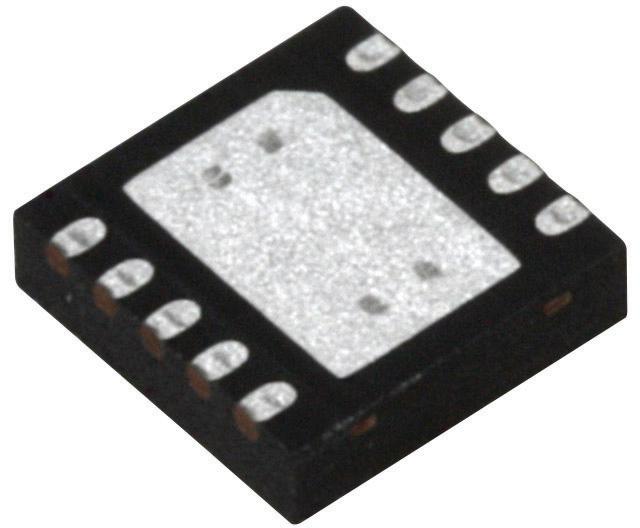

Buy the ON Semiconductor Series NIS6150 Electronic Fuse: NIS6150MT1TXG
Purchase the ON Semiconductor NIS6150MT1TXG electronic fuse online today for reliable protection of USB, automotive, and industrial circuits. This resettable fuse features overvoltage, reverse current, thermal shutdown, and adjustable current limiting for enhanced system safety. Compact design fits seamlessly into various applications like SSDs, motherboards, and infotainment systems. The device’s fast response, thermal protection, and integrated current monitoring ensure continuous operation under demanding conditions. Buy now and ensure your circuits are protected with industry-leading reliability and compliance standards.
Get ON Semiconductor NIS6150MT1TXG today—built for precision and long-lasting durability in electronic and automotive protection.
Frequently Asked Questions
Where can I buy ONSEMI NIS6150MT1TXG?
You can click on the BUY or RFQ button to purchase NIS6150MT1TXG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NIS6150MT1TXG?
You can download the NIS6150MT1TXG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NIS6150MT1TXG?
ONSEMI
