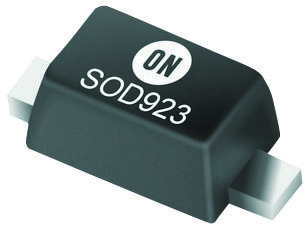

ONSEMI BAS16P2T5G Switching Diode
The BAS16P2T5G is a surface-mount switching diode in the SOD-923 package. Designed for low-power switching applications, it features a maximum reverse voltage of 100V and peak forward current of 200mA. Ideal for space-constrained circuits, it offers excellent thermal characteristics with a junction-to-ambient resistance of 520°C/W. The device complies with RoHS standards, is Pb-Free, Halogen-Free, and suitable for high-speed switching with low capacitance of 2.0pF. Its robust design ensures reliable performance in compact electronic systems, making it a popular choice for automated manufacturing.
ONSEMI BAS16P2T5G Switching Diode Specifications:
- Maximum Reverse Voltage: 100 V
- Peak Forward Current: 200 mA
- Peak Forward Surge Current: 500 mA
- Junction-to-Ambient Thermal Resistance: 520°C/W
- Total Power Dissipation @ Pp: 240 mW
- Operating Temperature Range: -55°C to +150°C
- Capacitance: 2.0 pF
- Forward Voltage: 715-855 mV (at 1.0 mA), 1250 mV (at 150 mA)
- Reverse Leakage Current: 1.0 μA (at 75 V), 100 μA (at 100 V)
- Storage Temperature Range: -55°C to +150°C
- Package: SOD-923 surface-mount
Buy the ON Semiconductor Series Switching Diode: BAS16P2T5G
Order the ON Semiconductor BAS16P2T5G online today to enjoy quick delivery and seamless integration into your electronic projects. This position surface-mount diode offers high-speed switching capabilities with low capacitance and excellent thermal performance, ensuring reliability in space-constrained systems. Perfect for compact designs, it guarantees superior electrical characteristics such as 100V reverse voltage and 200mA peak forward current. Buy now to enhance your circuit's efficiency, reduce board space, and ensure dependable operation for your applications.
Buy ON Semiconductor BAS16P2T5G now and experience unmatched reliability and performance in space-efficient switching applications.
Frequently Asked Questions
Where can I buy ONSEMI BAS16P2T5G?
You can click on the BUY or RFQ button to purchase BAS16P2T5G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part BAS16P2T5G?
You can download the BAS16P2T5G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of BAS16P2T5G?
ONSEMI
