ONSEMI NIS6350MT2TXG Resettable electronic fuse
The NIS6350 electronic fuse is a resettable, cost-effective device designed to enhance USB and automotive circuit reliability. It offers overvoltage, reverse current, thermal shutdown, and current limit protection, ensuring sensitive loads are safeguarded against voltage spikes and faults. The device features adjustable output current, integrated reverse current protection, fast response overvoltage clamp, and optional latching or auto-retry operation modes. Suitable for automotive infotainment, USB charging, SSDs, and motherboards, it provides robust overvoltage and thermal protection with a compact package and comprehensive monitoring capabilities.
ONSEMI NIS6350MT2TXG Resettable electronic fuse Specifications:
- Maximum Input Voltage: -0.3 to +10 V (steady-state and transient)
- Maximum Output Voltage: 0.3 to +20 V
- Overvoltage Clamp Level: 56-75 V (configurable using Vc_SEL)
- Continuous Current Limit: 3.0 A
- Reverse Current Threshold: 25-250 mV
- Thermal Shutdown Temperature: 175°C (latch) / 135°C (auto-retry)
- Operating Ambient Temperature Range: -40°C to 125°C
- Total Power Dissipation: 1.3 W
- Thermal Resistance, Junction-to-Air: 95°C/W
- ESD Protection: Human Body Model 2 kV, IEC61000-4-2 Level 4 (47 kV contact)
- Auto-retry and latching options available, compatible with AEC-Q100 standards
- Package: 3 x 3 mm WDFNW10, Pb-Free, Halogen Free

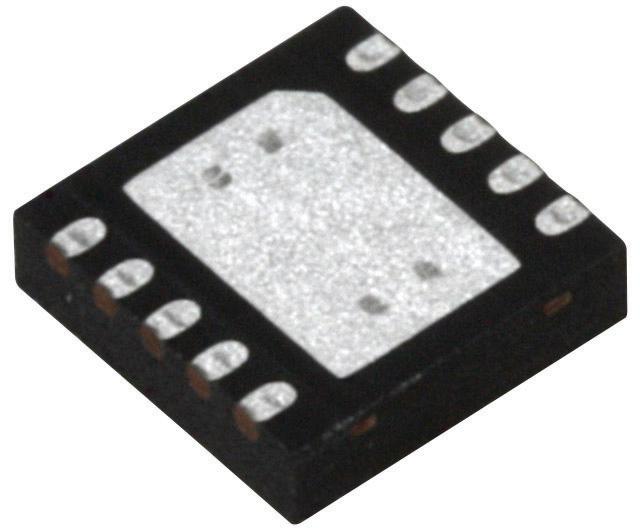

Buy the ON Semiconductor Series NIS6350 Electronic Fuse: NIS6350MT2TXG
Secure your circuits with the ON Semiconductor NIS6350MT2TXG, a reliable resettable fuse that offers overvoltage, reverse current, and thermal protection. Its adjustable current limit and integrated fault indicators simplify circuit design, making it perfect for automotive infotainment, USB charging, SSDs, and motherboards. Designed to operate within harsh conditions, this device ensures your sensitive electronics are protected from transient surges and faults. Buy online today and experience durable, high-performance circuit protection with ease.
Get ON Semiconductor NIS6350MT2TXG today—built for precision and long-lasting durability in USB and automotive power protection.
