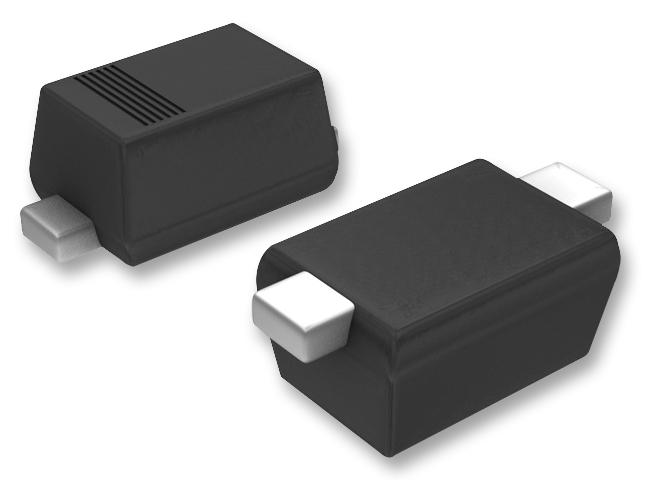

ONSEMI 1SS400T5G High-Speed Diode
These high-speed switching diodes feature a compact SOD-523 package, with a maximum reverse voltage of 100 V and forward current of 200 mAdc. They are qualified for automotive applications, RoHS compliant, and have lead finish of 100% matte tin. Designed for efficient fast switching, they exhibit a peak forward surge current of 500 mAdc and a reverse recovery time of 40 ns. Suitable for use in electronic circuits requiring rapid switching and reliable performance in both industrial and automotive environments.
ONSEMI 1SS400T5G High-Speed Diode Specifications:
- Reverse Voltage: 100 V
- Forward Current: 200 mAdc
- Peak Forward Surge Current: 500 mAdc
- Maximum Power Dissipation: 200 mW at 25°C
- Thermal Resistance Junction-to-Ambient: 635 °C/W
- Junction and Storage Temperature Range: -55°C to +150°C
- Device Package: SOD-523
- Lead Finish: Matte Sn (Tin)
- Qualified for automotive applications (AEC-Q101)
- Reverse Leakage Current: 0.1 μA at 80 V
- Diode Capacitance: 30 pF at 0 V, 1.0 MHz
- Forward Voltage: 1.2 V at 100 mAdc
- Reverse Recovery Time: 40 ns
Buy the Buy ON Semiconductor High-Speed Switching Diode Part Number 1SS400T1G Online
Purchase the ON Semiconductor 1SS400T1G high-speed diode online today. This diode offers excellent switching speeds with a maximum reverse voltage of 100 V and forward current of 200 mAdc. Its small SOD-523 package makes it ideal for compact circuit designs. Suitable for automotive, industrial, and electronic applications, this diode features a peak surge current of 500 mAdc and a recovery time of 40 ns, ensuring dependable performance in demanding environments. Order now for quick delivery and high-quality component assurance.
Order your ON Semiconductor 1SS400T1G high-speed diode today and ensure your electronic circuits operate with fast, reliable switching performance essential for automotive and industrial applications.
Frequently Asked Questions
Where can I buy ONSEMI 1SS400T5G?
You can click on the BUY or RFQ button to purchase 1SS400T5G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 1SS400T5G?
You can download the 1SS400T5G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 1SS400T5G?
ONSEMI
