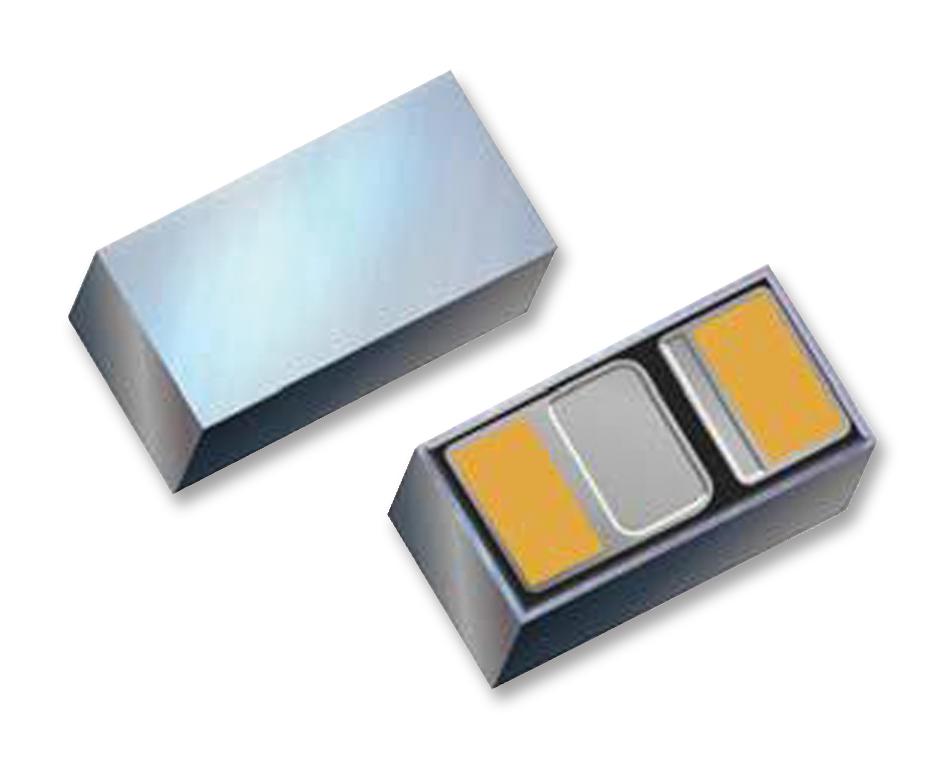

ONSEMI NSR05F30NXT5G Schottky Barrier Diode
These Schottky barrier diodes are optimized for low forward voltage drop and low leakage current, offered in a compact Chip Scale Package to save space. They support up to 500 mA continuous current, feature high switching speed, and exhibit excellent thermal performance with low junction-to-ambient resistance. Widely used in LCD backlighting, camera flash, and power regulation, these RoHS-compliant, Pb-Free diodes provide reliable reverse voltage protection and fast switching for various portable and industrial electronic applications, making them ideal for space-constrained circuit designs.
ONSEMI NSR05F30NXT5G Schottky Barrier Diode Specifications:
- Reverse Voltage: 30 V
- Forward Current: 500 mA
- Repetitive Peak Forward Current: 4.0 A
- Surge Forward Current: 10 A
- ESD Rating: >8 kV Human Body Model, >400 V Machine Model
- Typical Forward Voltage: 0.400 V at 500 mA
- Junction-to-Ambient Thermal Resistance: 94°C/W
- Total Power Dissipation: 1.3 W at 25°C
- Storage Temperature Range: -40°C to +125°C
- Junction Temperature: up to +150°C
- Device Package: DSN2 (0402)
- RoHS and Halogen Free, Pb-Free, RoHS Compliant
Buy the ON Semiconductor NSROSF30NXT5G – Reliable Schottky Barrier Diode for Industrial Applications
Order the compact Schottky barrier diode NSROSF30NXT5G online today and ensure high efficiency, fast switching, and space-saving performance for your electronic projects. Its low forward voltage of 0.400 V at 500 mA, high-speed switching capabilities, and robust thermal characteristics make it ideal for reverse voltage protection, power conversion, and energy-efficient circuits in mobile devices, cameras, and industrial systems. Reliability, RoHS compliance, and Pb-Free construction guarantee optimal performance and safety in demanding applications. Purchase now for seamless integration.
Buy ON Semiconductor NSROSF30NXT5G now and experience unmatched reliability and performance in your power management and high-speed switching designs.
Frequently Asked Questions
Where can I buy ONSEMI NSR05F30NXT5G?
You can click on the BUY or RFQ button to purchase NSR05F30NXT5G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NSR05F30NXT5G?
You can download the NSR05F30NXT5G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NSR05F30NXT5G?
ONSEMI
