ONSEMI NSVRB751V40T1G Schottky Diode
The RB751V40T1G is a high-speed Schottky barrier diode designed for efficient circuit protection, voltage clamping, and switching applications. It features an extremely low forward voltage of 0.28V at 1mA, ensuring low conduction loss, and can handle a maximum reverse voltage of 30V. Encased in a compact SOD-323 package, it is ideal for portable and space-constrained electronic devices, with automotive grade options qualifying under AEC-Q101 standards. The diode exhibits low reverse leakage current and rapid switching capabilities, making it suitable for demanding electronic systems.
ONSEMI NSVRB751V40T1G Schottky Diode Specifications:
- Maximum Reverse Voltage: 30 V
- Peak Reverse Voltage: 40 V
- Forward Continuous Current: 30 mA
- Peak Forward Surge Current: 500 mA
- Total Capacitance: 2.0 - 25 pF
- Reverse Leakage Current: 300 - 500 nA at 30 V
- Forward Voltage: 0.28 - 0.37 V at 1 mA
- Electrostatic Discharge: HBM Class 1C, MM Class A
- Device Dissipation: 200 mW at 25°C
- Thermal Resistance Junction-to-Ambient: 635 °C/W
- Operating Temperature Range: -85°C to +150°C
- Package: SOD-323, Lead thickness specified, Pb-Free, Halogen/BFR free compliant
- Dimensions: Length 1.60 mm, Width 0.63 mm, Height 2.85 mm

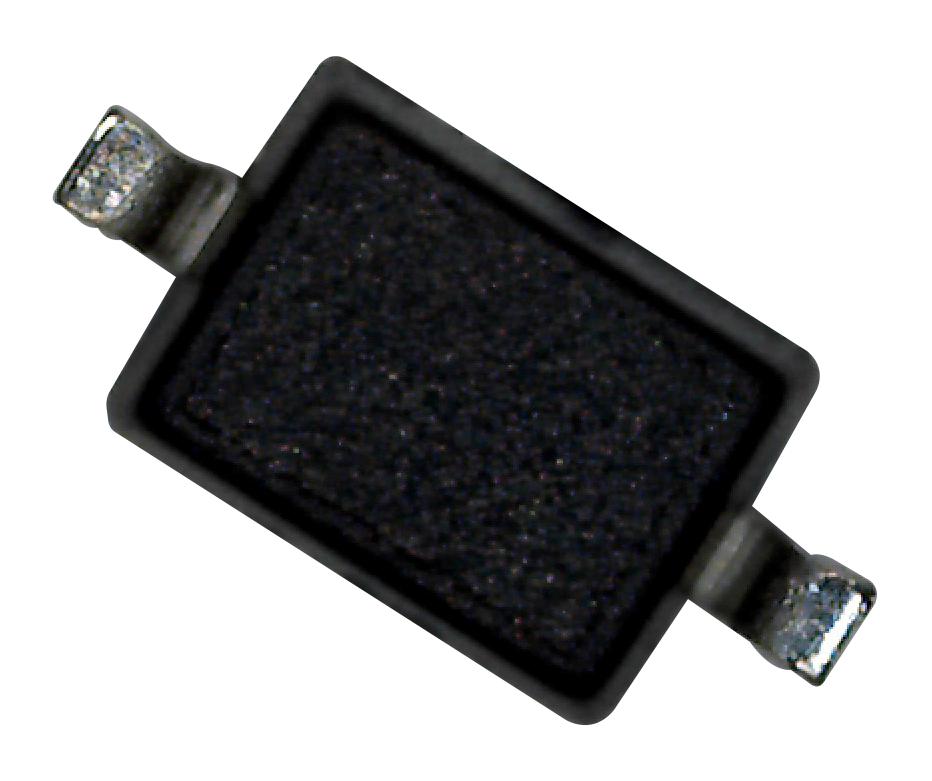

Buy the Buy ON Semiconductor RB751V40T1G Schottky Barrier Diode Part Number RB751V40T1G Online
Purchase the ON Semiconductor RB751V40T1G Schottky diode online today to enhance your electronic projects with fast switching speeds, low forward voltage, and reliable low leakage current. This miniature SOD-323 package suits space-constrained applications and offers automotive grade quality, including AEC-Q101 qualification. Its low capacitance and surge current handling make it perfect for high-speed switching, circuit protection, and voltage clamping in portable and industrial devices. Get dependable, RoHS-compliant performance delivered quickly when you buy online now.
Order your ON Semiconductor RB751V40T1G Schottky diode today and ensure rapid switching performance and efficient circuit protection in your design.
Frequently Asked Questions
Where can I buy ONSEMI NSVRB751V40T1G?
You can click on the BUY or RFQ button to purchase NSVRB751V40T1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NSVRB751V40T1G?
You can download the NSVRB751V40T1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NSVRB751V40T1G?
ONSEMI
