ONSEMI LM224DR2G Quad Operational Amplifier
The LM224DR2G is a quad operational amplifier featuring true differential inputs. It is designed for single-supply applications, operating efficiently at voltages from 3V to 32V with low quiescent currents, approximately one-fifth of standard op-amps like the MC1741. The amplifier's inputs can handle signals down to the negative supply voltage, eliminating the need for external biasing components. Its output voltage range includes the negative supply voltage, and it offers features such as short-circuit protected outputs, internal compensation, and industry-standard pin configuration. Additionally, the device is protected against electrostatic discharge (ESD) on the inputs, enhancing robustness during handling and operation.
ONSEMI LM224DR2G Quad Operational Amplifier Specifications:
- Operational Amplifier Type: Quad
- Supply Voltage Range: 3.0 V to 32 V
- Input Common Mode Voltage Range: Includes Negative Supply
- Output Voltage Range: Includes Negative Supply Voltage
- Input Bias Current: Max 100 nA
- Short Circuit Protected Outputs
- Internally Compensated
- ESD Protection: Inputs protected against ESD
- Case Options: PDIP-14, SOIC-14, TSSOP-14
- Maximum Junction Temperature: 150°C
- Power Dissipation: As specified per package
- Operating Temperature Range: 0°C to +70°C
- ESD Ratings: 2000 V (HBM), 200 V (MM) for automotive qualification

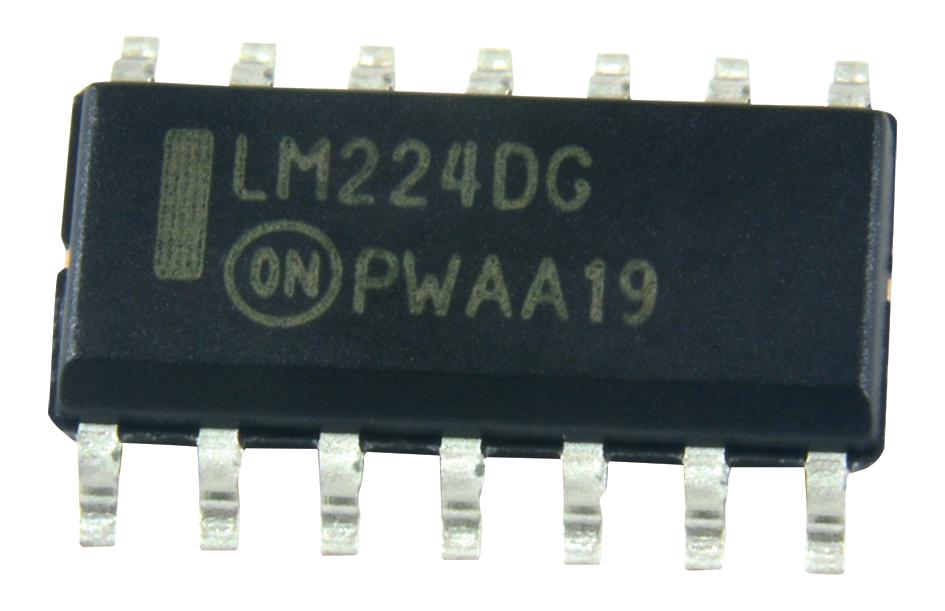

Buy the ON Semiconductor LM224DR2G – Reliable Quad Operational Amplifier for Industrial Applications
Order the ON Semiconductor LM224DR2G online today and enhance your designs with a robust, industry-standard quad operational amplifier that offers high voltage range, low quiescent current, and protection features suitable for industrial, automotive, and embedded applications. With industry-leading specifications, fast response, and reliable performance, this device ensures your circuits operate efficiently and accurately under demanding conditions. Purchase now for quick delivery and start integrating high-performance op-amps into your projects effortlessly.
Buy ON Semiconductor LM224DR2G now and experience unmatched reliability and low power performance in industrial and automotive electronic systems.
Frequently Asked Questions
Where can I buy ONSEMI LM224DR2G?
You can click on the BUY or RFQ button to purchase LM224DR2G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part LM224DR2G?
You can download the LM224DR2G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of LM224DR2G?
ONSEMI
