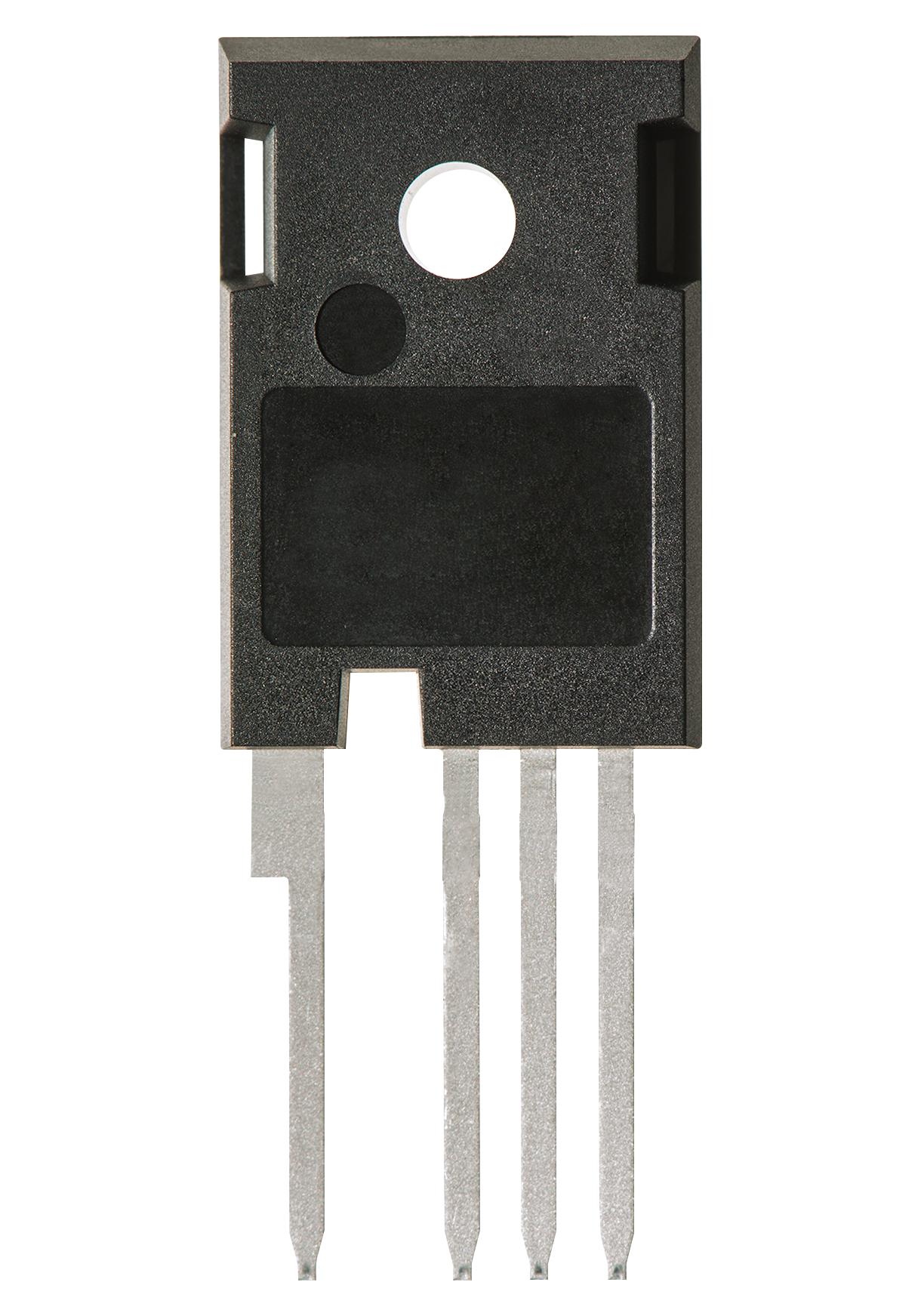

ONSEMI NTH4L040N120SC1 Silicon Carbide Power MOSFET
The NTH4L040N120SC1 is a high-voltage N-channel Silicon Carbide MOSFET designed for industrial power switching applications. It features ultra-low gate charge, high-speed switching capabilities, and is 100% avalanche tested for reliability. Suitable for UPS systems, DC/DC converters, and boost inverters, it offers a drain-to-source voltage of 1200 V, a continuous drain current of 58 A, and low on-resistance. Its robust thermal and electrical characteristics ensure efficient performance in demanding environments.
ONSEMI NTH4L040N120SC1 Silicon Carbide Power MOSFET Specifications:
- Drain-to-Source Voltage: 1200 V
- Continuous Drain Current: 58 A at 25°C
- Power Dissipation: 319 W at 25°C
- Maximum Junction Temperature: 175°C
- Gate-to-Source Voltage: -15/425 V
- Gate Threshold Voltage: 1.8/3.4 V
- On-Resistance: 40-70 mo depending on temperature
- Capacitances: Coss = 137 pF, Ciss = 172 pF, Cass = 17 pF
- Total Gate Charge: 106 nc
- Pulsed Drain Current: 232 A
- Avalanche Energy: 578 mJ
- Thermal Resistance (Junction-to-Ambient): 40 °C/W
- Package: TO-247-4L
Buy the ON Semiconductor NTH4L040N120SC1 – Reliable SiC Power MOSFET for Industrial Applications
Purchase the Silicon Carbide Power MOSFET now and benefit from its high-voltage capacity, ultra-low gate charge, and fast switching for efficient power conversion. Designed for demanding industrial environments, this device offers high current capacity, low on-resistance, and excellent thermal performance, ensuring reliable operation in UPS, inverter, and DC/DC systems. Order online today to enhance your power electronics with this robust and efficient MOSFET that meets stringent industry standards and guarantees dependable long-term performance.
Buy ON Semiconductor NTH4L040N120SC1 now and experience unmatched reliability and high-performance in your industrial power systems.
Frequently Asked Questions
Where can I buy ONSEMI NTH4L040N120SC1?
You can click on the BUY or RFQ button to purchase NTH4L040N120SC1 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NTH4L040N120SC1?
You can download the NTH4L040N120SC1 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NTH4L040N120SC1?
ONSEMI
