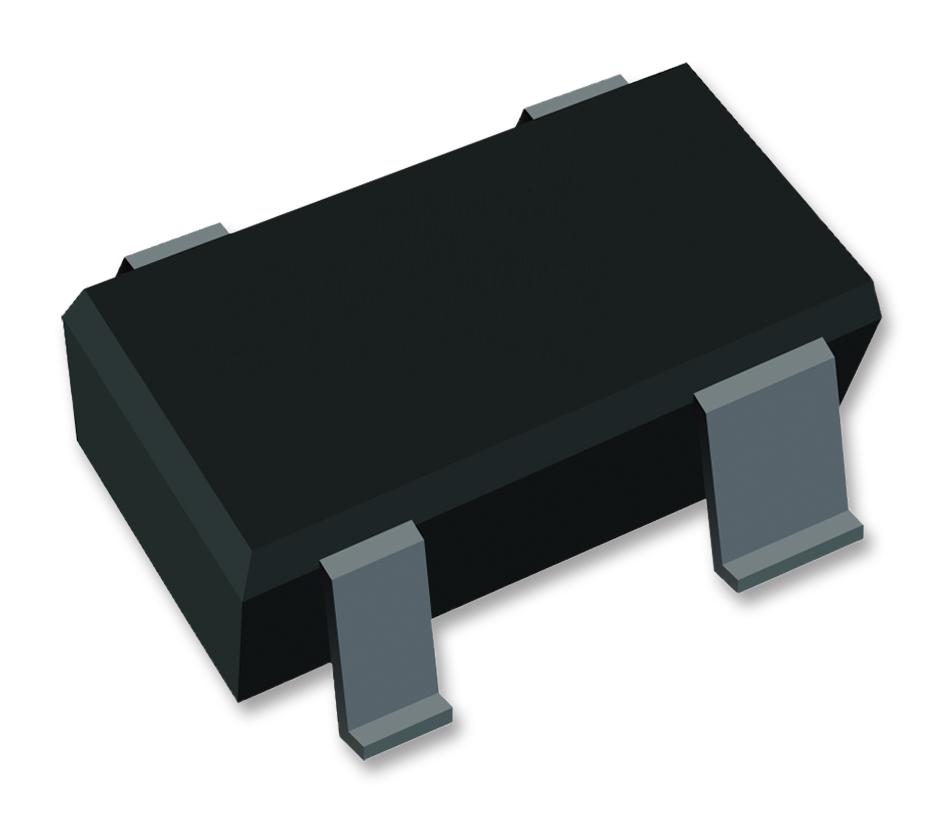

ONSEMI NSVF4015SG4T1G RF Transistor
The NSVF4017SG4 is a high-frequency RF transistor optimized for low noise amplifier applications across VHF to microwave frequencies. Featuring a maximum cut-off frequency of 10 GHz, it offers high gain and low noise figure, making it ideal for digital radio, TV, FM radio, and UHF RF amplification. Packaged in MCPH4, which ensures superior heat radiation, it is AEC-Q101 qualified and PPAP capable, suitable for automotive environments. Its robust electrical specifications and thermally efficient design provide reliable performance in demanding high-frequency communication systems.
ONSEMI NSVF4015SG4T1G RF Transistor Specifications:
- Package: MCPH4, pin-compatible with SC-82FL
- Maximum Frequency: 10 GHz typical
- Noise Figure: 1.2 dB at 1 GHz
- Gain: 17 dB at 1 GHz
- Collector to Base Voltage: 20 V
- Collector to Emitter Voltage: 12 V
- Emitter to Base Voltage: 2 V
- Collector Current: 100 mA
- Collector Dissipation: 450 mW
- Operating Junction Temperature: -55°C to +150°C
- Features: Low-noise, high gain, high cut-off frequency, robust heat radiation, AEC-Q101 qualified, PPAP capable, RoHS compliant
- Application: Low Noise Amplifiers for Digital Radio, TV, FM Radio, RF Amplifiers for UHF
- Material: Pb-Free, Halogen Free, BFR Free
- Heat Radiation: MCPH package suitable for high temperature environments
Buy the Buy ON Semiconductor NSVF4017SG4 RF Transistor Part Number NSVF4017SG4 Online
Get the ON Semiconductor NSVF4017SG4 RF Transistor online today for high-performance low noise amplification at up to 10 GHz. This reliable RF device is ideal for digital radio, TV, FM radio, and UHF applications. Its MCPH4 package offers exceptional heat dissipation, making it suitable for demanding environments, including automotive systems. With high gain, low noise figure, and qualified for automotive and high-temperature applications, it ensures superior performance and durability. Purchase now to enhance your communication systems with proven high-frequency RF components.
Order your ON Semiconductor NSVF4017SG4 RF Transistor today and ensure high-frequency low noise amplification with reliable automotive-grade quality.
Frequently Asked Questions
Where can I buy ONSEMI NSVF4015SG4T1G?
You can click on the BUY or RFQ button to purchase NSVF4015SG4T1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NSVF4015SG4T1G?
You can download the NSVF4015SG4T1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NSVF4015SG4T1G?
ONSEMI
