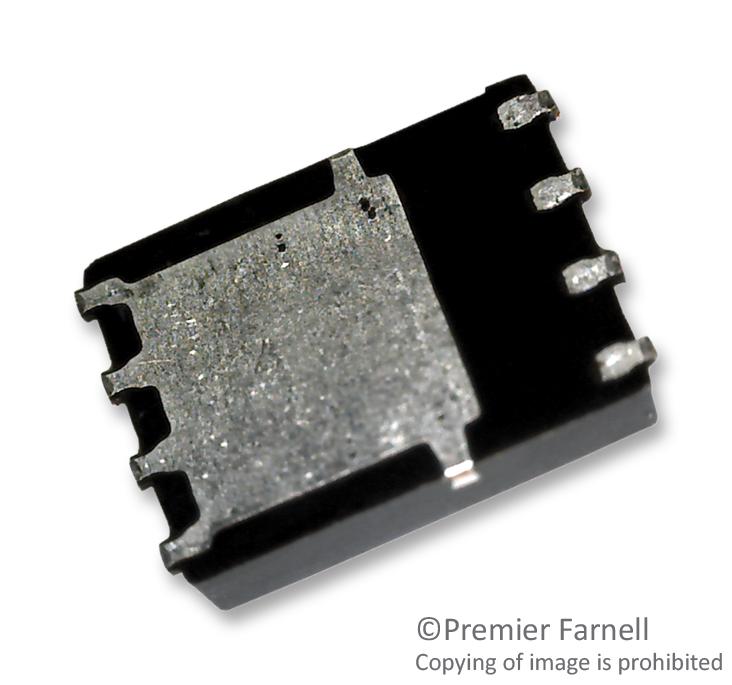

ONSEMI NTMFSC004N08MC Power MOSFET
This N-Channel Power MOSFET features dual-sided cooled packaging, low Rds(on) for minimal conduction losses, and high current capacity suitable for load switching and DC-DC conversion applications. It is RoHS compliant, Pb-Free, halogen-free, and designed for robust performance with high voltage and current ratings, making it ideal for high-power applications requiring reliability and efficiency. The device includes thermal and electrical characteristics optimized for efficient operation, with a compact DFN8 package for easy installation in demanding electronic systems.
ONSEMI NTMFSC004N08MC Power MOSFET Specifications:
- Drain-to-Source Voltage: 80 V
- Continuous Drain Current: 136 A
- Power Dissipation: 127 W (board), 51 W (junction)
- Rds(on): 8.5 mΩ at 6 V, 4.0 mΩ at 10 V
- Gate-to-Source Voltage: ±20 V
- Gate Threshold Voltage: 2.0 V to 4.0 V
- Maximum Storage Temperature: -55°C to +150°C
- Lead Temperature Soldering Reflow: 300°C for 10s
- Thermal Resistance Junction-to-Case: 0.98°C/W
- Thermal Resistance Junction-to-Ambient: 39°C/W
- Capacitances: Ciss 2980 pF, Coss 950 pF, Crss 50 pF
- Switching Times (Rise, Fall): 21.5 ns, 5.4 ns respectively
- Reverse Recovery Time: 44 ns
- Avalanche Energy: 178 mJ
- Package: DFN8 5x6.15 mm, Dual Cool
- RoHS, Pb-Free, Halogen-Free
Buy the Buy ON Semiconductor N-Channel Power MOSFET Part Number NTMFSC004N08MC Online
Order the ON Semiconductor NTMFSC004N08MC power MOSFET online today to benefit from high current handling up to 136A, low Rds(on) for reduced conduction losses, and dual-sided cooling for optimal thermal management. Designed for load switching and DC-DC conversion, this robust device features a compact DFN8 package, RoHS compliance, and high-voltage operation of 80V. Enhance your electronic systems' performance with this reliable, high-efficiency power component available for quick delivery and seamless integration into your design.
Buy ON Semiconductor NTMFSC004N08MC now and experience unmatched reliability and efficient power switching in your high-current applications.
Frequently Asked Questions
Where can I buy ONSEMI NTMFSC004N08MC?
You can click on the BUY or RFQ button to purchase NTMFSC004N08MC from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NTMFSC004N08MC?
You can download the NTMFSC004N08MC datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NTMFSC004N08MC?
ONSEMI
