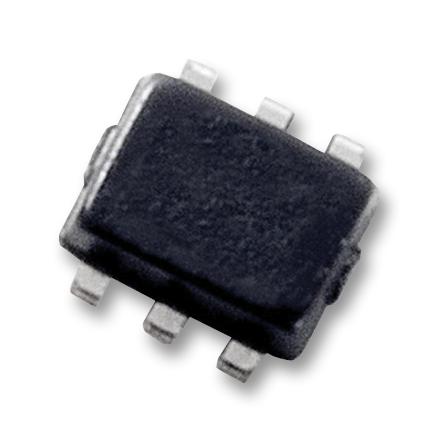

ONSEMI NUF2230XV6T1G EMI Filter
The NUF2230XV6 is a compact 2-line EMI filter with integrated ESD protection, ideal for wireless devices such as mobile phones, PDAs, and notebooks. It ensures over —30 dB attenuation from 800 MHz to 900 MHz, effectively reducing EMI/RFI emissions. The device offers IEC61000-4-2 Level 4 ESD compliance, supporting static discharge protection across all capacitors. In a SOT-563 package, it provides increased system reliability and space savings while integrating 10 discrete components for efficient filtering and transient suppression in compact applications.
ONSEMI NUF2230XV6T1G EMI Filter Specifications:
- Package: SOT-563
- ESD Ratings: Machine Model = C, Human Body Model = 3B
- ESD Discharge: Air = 15 kV, Contact = 8.0 kV
- Maximum Operating Temperature: 85°C
- Storage Temperature Range: -55°C to 150°C
- Maximum Soldering Lead Temperature: 260°C for 10 seconds
- Attenuation: Greater than —30 dB from 800 MHz to 900 MHz
- Capacitance: 16 pF at 2.5 V, 1.0 MHz
- Breakdown Voltage: 6.0 to 7.0 V
- Reverse Voltage: 5.0 V
- Resistance: 90 to 110 Ω at 20 mA
- Resistance over Temperature: Normalized resistance up to 108 Q
- Cut-Off Frequency: 125 MHz
- Dimensions: Standard for SOT-563 package including lead and soldering specifications
Buy the Buy ON Semiconductor NUF2230XV6 T1G Part Number NUF2230XV6T1G Online
Secure your wireless project with the ON Semiconductor EMI Filter featuring ESD protection. Designed for compact systems, this filter reduces EMI emissions by over 30 dB between 800 MHz and 900 MHz. It complies with IEC61000-4-2 Level 4 standards, providing static discharge protection across all capacitors. In a space-saving SOT-563 package, this integrated solution simplifies design by combining 10 discrete components into one device, enhancing system reliability and reducing parasitic inductance for effective filtering. Upgrade your electronics with this high-performance EMI filtering component today.
Order your ON Semiconductor NUF2230XV6T1G EMI filter with ESD protection today and ensure reliable static discharge and EMI filtering for wireless applications.
