ONSEMI PZTA06 General-Purpose Transistor
This NPN general-purpose amplifier is designed for collector currents up to 300 mA, featuring a collector-emitter voltage of 80 V and a collector-base voltage of 80 V. It operates across a temperature range from -55°C to +150°C and is packaged in a SOT-223 form factor for easy integration into various electronic assemblies. Ideal for switching and amplification applications, the device provides a high current gain, low saturation voltage, and robust thermal characteristics, making it suitable for general electronics, instrumentation, and control circuitry demanding reliable performance under varying conditions.
ONSEMI PZTA06 General-Purpose Transistor Specifications:
- Collector-Emitter Voltage: 80 V
- Collector-Base Voltage: 80 V
- Emitter-Base Voltage: 4.0 V
- Collector Current - Continuous: 500 mA
- Operating Junction Temperature: -55°C to +150°C
- Total Device Dissipation (Pp): 625 mW
- Thermal Resistance Junction-to-Case: 83.3 °C/W
- Thermal Resistance Junction-to-Ambient: 200 °C/W
- Dimensions vary with package: TO-92, SOT-23, SOT-223
- Power Dissipation (Pp): 1000 mW
- Maximum Collector-Emitter Voltage (Vceo): 80 V
- Maximum Collector-Base Voltage (Veso): 80 V
- Maximum Emitter-Base Voltage (Vebo): 4.0 V
- Storage and Operating Temperature Range: -55°C to +150°C

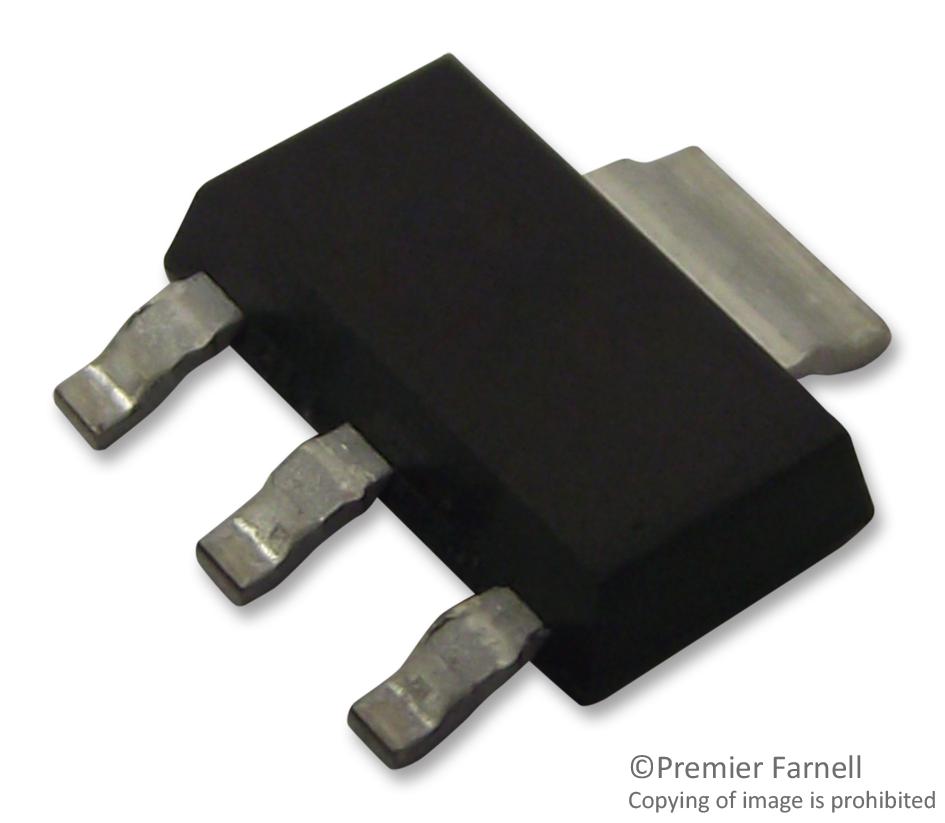

Buy the Buy ON Semiconductor PZTA06 Part Number PZTA06 Online
Purchase the ON Semiconductor PZTA06 transistor online now and take advantage of its robust performance in amplification and switching applications. With a collector current of up to 300 mA and a collector-emitter voltage of 80 V, it provides excellent thermal stability and reliability. Available in various packages such as TO-92, SOT-23, and SOT-223, this transistor is ideal for industrial and control systems. Secure your supply today for seamless integration into your electronics projects with trusted quality and fast delivery.
Order your ON Semiconductor PZTA06 transistor today and ensure your electronic projects benefit from reliable performance, high current capacity, and thermal stability.
Frequently Asked Questions
Where can I buy ONSEMI PZTA06?
You can click on the BUY or RFQ button to purchase PZTA06 from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part PZTA06?
You can download the PZTA06 datasheet or visit the ONSEMI website for support.
Who is the manufacturer of PZTA06?
ONSEMI
