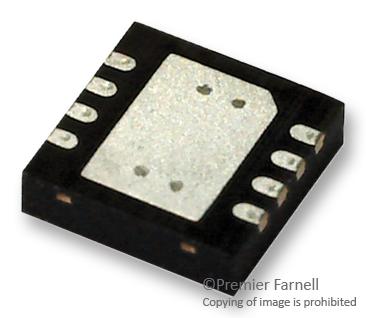

ONSEMI NUF4402MNT1G Four-Channel EMI Filter
The NUF4402MN is a compact, four-channel EMI filter array with integrated ESD protection, designed for high-speed data interfaces up to 101 Mbps. Its Pi-style configuration with R=100 Q and C=12 pF provides a cutoff frequency of 151 MHz, effectively attenuating interference from wireless signals like Bluetooth, GPS, and WLAN frequencies from 800 MHz to 3 GHz. Its small DFN8 package (1.6 mm x 1.6 mm) ensures space savings for size-constrained systems, making it ideal for LCDs, cameras, and I/O ports requiring reliable EMI filtering and ESD protection.
ONSEMI NUF4402MNT1G Four-Channel EMI Filter Specifications:
- Package: DFN8, 1.6 mm x 1.6 mm
- Channel Count: 4 channels
- Component Values: R=100 Q, C=12 pF
- Cutoff Frequency: 151 MHz
- Stop Band Attenuation: greater than -25 dB from 800 MHz to 3.0 GHz
- ESD Protection: ±14 kV IEC61000-4-2 Contact Discharge, ±8 kV Human Body Model
- Maximum Reverse Working Voltage: 5.0 V
- Breakdown Voltage: 6.0 to 8.0 V
- Resistance: typical 100 Q
- Line Capacitance: 20 to 30 pF
- Diode Capacitance: 10 to 15 pF
- Operating Temperature: -40°C to 85°C
- Storage Temperature: -55°C to 150°C
- Maximum Soldering Temperature: 260°C for 10 sec
- Resistance over Temperature: varies with temperature, typical resistance increases slightly at high temperatures
