ONSEMI NUF8401MNT4G Multi-channel EMI Filter
The NUF8401MN is an eight-channel Pi-style EMI filter with integrated ESD protection, capable of minimizing wireless interference for data rates up to 117 Mbps. Its low-profile DFN16 package includes features such as 14 kV ESD protection, R = 100 Ω and C = 12 pF values delivering a cutoff frequency of 175 MHz, and stop-band attenuation over -25 dB from 800 MHz to 2.2 GHz. Ideal for EMI filtering in LCDs, cameras, and input/output ports, this compact device combines filtering and protection into a single cost-effective solution, saving board space and improving system reliability.
ONSEMI NUF8401MNT4G Multi-channel EMI Filter Specifications:
- Package: DFN16, 4x1.6 mm, 0.5P
- Channels: 8
- ESD Protection: ±14 kV (IEC61000-4-2 Contact Discharge)
- Resistance: 100 Ω
- Capacitance: 12 pF
- Cutoff Frequency: 175 MHz (3 dB)
- Stop Band Attenuation: > -25 dB from 800 MHz to 2.2 GHz
- Maximum Reverse Voltage: 5.0 V
- Breakdown Voltage: 6.0 - 8.0 V
- Leakage Current: 100 nA
- Operating temperature range: -40°C to 85°C
- Storage temperature: -55°C to 150°C
- Maximum soldering temperature: 260°C for 10s

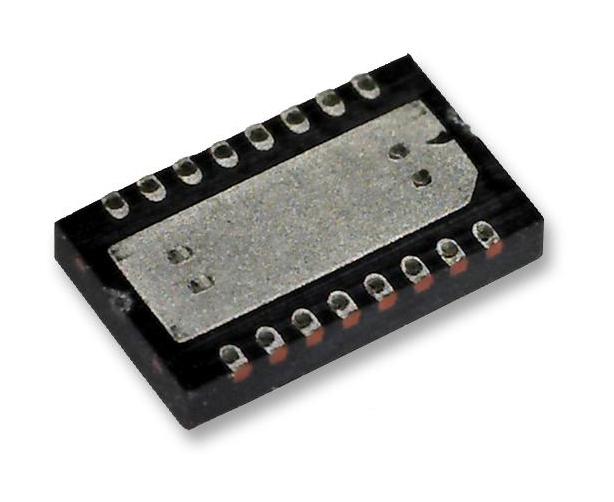

Buy the Buy ON Semiconductor NUF8401MN Part Number NUF8401MN Online
Secure your high-speed data lines with the NUF8401MN, a compact eight-channel EMI filter with integrated 14 kV ESD protection, ideal for LCDs, cameras, and input/output ports. Its low-profile DFN16 package saves valuable space on your PCB, reducing component count and assembly costs. Featuring a 175 MHz cutoff frequency and attenuation greater than -25 dB from 800 MHz to 2.2 GHz, this device ensures minimal interference from wireless signals like Bluetooth®, GPS, and 2G/3G networks. Reliable and easy to install, order online today for improved system performance and cost savings.
Order your ON Semiconductor NUF8401MN eight-channel EMI filter with integrated ESD protection today and enhance your device's signal integrity and reliability.
Frequently Asked Questions
Where can I buy ONSEMI NUF8401MNT4G?
You can click on the BUY or RFQ button to purchase NUF8401MNT4G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NUF8401MNT4G?
You can download the NUF8401MNT4G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NUF8401MNT4G?
ONSEMI
