ONSEMI NUP2201MR6T1G ESD Protection Diode
The NUP2201MR6T1G is an ESD protection TVS diode designed for high-speed data lines, offering low clamping voltage and low leakage current. It safeguards sensitive electronics against ESD, EFT, and lightning events, complying with IEC 61000-4-2 Level 4 standards. Operating from -40°C to +125°C, it is ideal for computers, peripherals, communication systems, video devices, consumer electronics, and industrial applications. The built-in steering diodes and TVS diode efficiently drive transients to ground or supply, minimizing signal distortion and protecting critical components.
ONSEMI NUP2201MR6T1G ESD Protection Diode Specifications:
- Peak Power Dissipation: 500 W (8 x 20 us @ 25°C)
- Stand-Off Voltage: 5 V
- Maximum Reverse Peak Pulse Current: 25 A
- Clamping Voltage: 12.5 V at 5 A, 20 V at 8 A
- Breakdown Voltage: 6.0 V
- Reverse Working Voltage: 5.0 V
- Reverse Leakage Current: 5.0 µA at 5 V
- Operating Temperature Range: -40°C to +125°C
- Storage Temperature: -85°C to +150°C
- IEC 61000-4-2 ESD Standard: Level 4, 8 kV contact, 20 kV air
- UL Flammability Rating: V-0
- Case: TSOP-6, Package dimensions: 3.0 mm x 2.4 mm
- RoHS and Pb-Free compliant
- Peak Power Dissipation: 500 W
- Junction Capacitance: 3.0 pF @ 0 V, 1 MHz

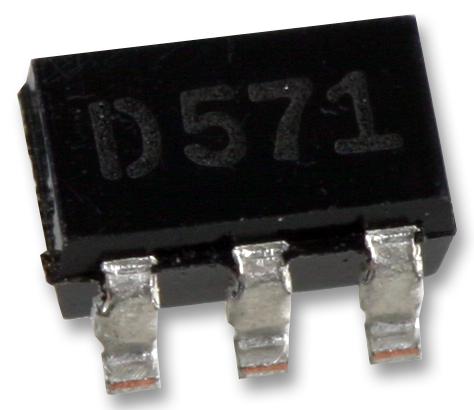

Buy the Buy ON Semiconductor NUP2201MR6T1G Transient Voltage Suppressor Part Number NUP2201MR6T1G Online
Protect your sensitive electronics with the ON Semiconductor NUP2201MR6T1G ESD protection diode. This low capacitance TVS diode safeguards high-speed data lines against ESD, EFT, and lightning strikes. It features low clamping voltage, minimal leakage current, and complies with IEC 61000-4-2 Level 4 standards. Designed for applications like computers, communication systems, and consumer electronics, it operates from -40°C to +125°C. Order online today to ensure your devices are protected with premium transient voltage suppression and fast response times.
Order your ON Semiconductor NUP2201MR6T1G low capacitance ESD protection diode today and safeguard your high-speed data lines with reliable transient suppression.
Frequently Asked Questions
Where can I buy ONSEMI NUP2201MR6T1G?
You can click on the BUY or RFQ button to purchase NUP2201MR6T1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NUP2201MR6T1G?
You can download the NUP2201MR6T1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NUP2201MR6T1G?
ONSEMI
