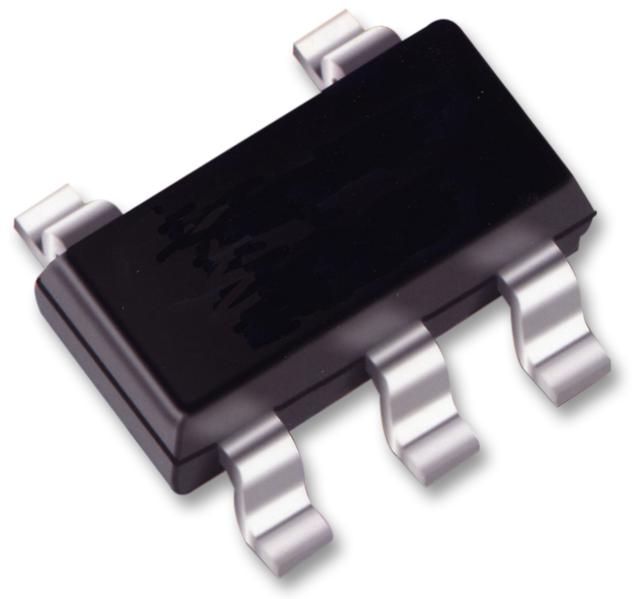

ONSEMI M74VHC1G125DTT1G Noninverting Buffer
The high-speed CMOS non-inverting 3-state buffer is designed with silicon gate technology, offering performance comparable to bipolar Schottky TTL while maintaining low power consumption. It features three internal stages, including a buffered 3-state output that provides high noise immunity and stable operation. The input structure allows for voltage protection up to 7V, making it suitable for interfacing 5V circuits with 3V systems. Additional features include power-down protection on inputs, balanced propagation delays, compatibility with other standard logic families, and a moderate chip complexity with 58 FETs and 15 gates. With a typical propagation delay of 3.5ns at 5V and maximum supply current of 1µA at 25°C, it is ideal for high-speed applications in industrial automation and process control.
ONSEMI M74VHC1G125DTT1G Noninverting Buffer Specifications:
- High Speed: tpp = 3.5 ns (Typ) at 5 V
- Low Power Dissipation: Icc = 1 µA (Max) at 25°C
- Power Down Protection on Inputs
- Buffered 3-state output for high noise immunity
- Input voltage protection up to 7 V
- Supply Voltage Range: 2.0 V to 5.5 V
- Maximum DC Supply Voltage: 7.0 V
- Maximum Input Voltage: 7.0 V
- Maximum Output Voltage: 7.0 V
- Maximum Input Diode Current: -20 mA
- Maximum Output Diode Current: 20 mA
- Maximum DC Output Current per Pin: 25 mA
- Maximum DC Supply Current: 50 mA
- Operating Temperature Range: -55°C to +125°C
- Power Dissipation in Still Air: 200 mW
- ESD Withstand Voltage: > 2000 V human body model
- Junction Temperature: +150°C
Buy the On Semiconductor Series 74VHC1G125 Noninverting Buffer: M74VHC1G125DTT1G
Elevate your industrial automation solutions with the high-speed CMOS non-inverting buffer. Designed with silicon gate technology, this device offers exceptional performance with a propagation delay of just 3.5 nanoseconds at 5V. Its low power consumption, protected inputs up to 7V, and compatibility with standard logic families make it ideal for high-speed data processing and control systems. Whether upgrading existing systems or developing new automation equipment, purchase the ON Semiconductor M74VHC1G125DTT1G online for dependable operation and seamless integration into your industrial control and electronic projects.
Buy ON Semiconductor 74VHC1G125DTT1G now and experience unmatched reliability and performance in high-speed industrial automation and interface applications.
