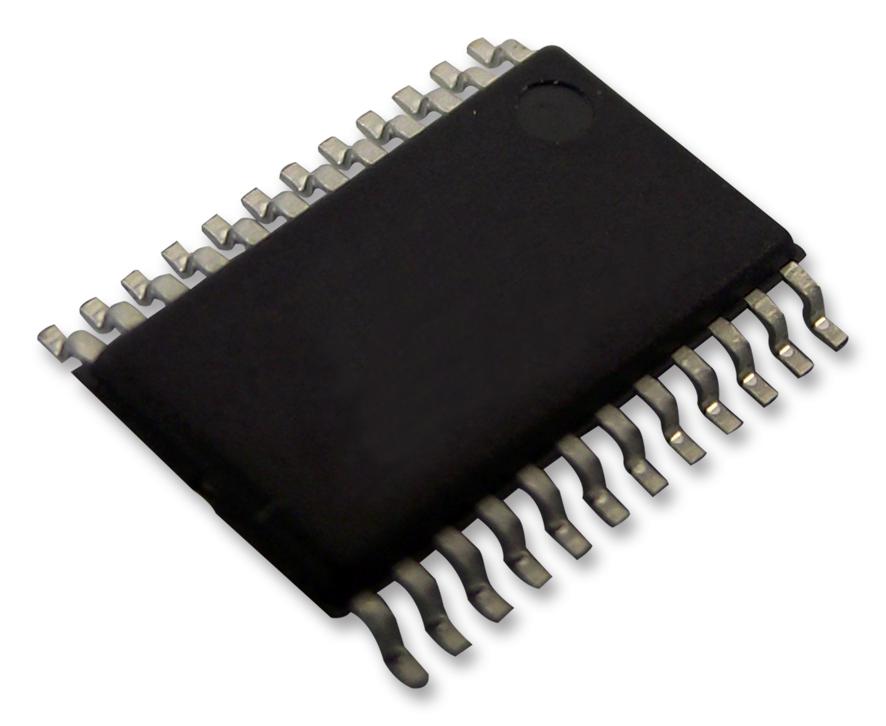

ONSEMI PCA9535ECDTR2G 16-bit I/O Expander
The PCA9535EC is a 16-bit low-power I/O expander with open-drain outputs, designed for I2C bus communication in industrial applications. It provides configurable input/output ports, polarity inversion, and an interrupt output to signal port changes. The device features a power-on reset, multiple slave addresses, and supports standard, fast, and Fast Mode+ I2C clock frequencies. With low standby current, high ESD performance, and Pb-Free packaging, it is ideal for controlling LEDs, sensors, and other peripherals in embedded systems and automation setups.
ONSEMI PCA9535ECDTR2G 16-bit I/O Expander Specifications:
- Operating Voltage Range: 1.65 V to 5.5 V
- Supply Voltage: Vpp 1.65 V to 5.5 V
- Input Voltage Range: -0.5 V to +7.0 V
- Output Current per Pin: Up to 50 mA; Total Power Dissipation: 600 mW
- Input/Output Pin Capacitance: 24-46 pF
- ESD Protection: > 3000 V Human Body Model
- Pin Count: 24
- Package Types: SOIC-24, TSSOP-24, WQFN-24
- Operating Temperature: -55°C to +125°C
- Thermal Resistance: SOIC-24 85 °C/W, TSSOP-24 91 °C/W, WQFN-24 68 °C/W
- Maximum Clock Frequencies: 100 kHz (Standard), 400 kHz (Fast), 1 MHz (Fast Mode+)
- Power-On Reset (POR) ensures default register states
- Supports 64 programmable slave addresses with address pins
- Interrupt pin active LOW on port change detection
- Low standby current for power-sensitive designs
- Pb-Free and RoHS compliant
