ONSEMI MOC3022VM Triac Driver Optoisolator
The MOC3022VM is a 6-pin DIP optoisolator designed as a random-phase TRIAC driver device. It features an infrared LED and a light-activated silicon bilateral switch that functions similarly to a TRIAC. This optoisolator is suitable for isolating and interfacing electronic controls with power TRIACs to manage resistive and inductive loads at 115VAC. Common applications include motor control, lighting, power management, solenoid and valve control, traffic lights, static AC switches, vending machines, and incandescent dimmer circuits. It offers excellent stability with low degradation of the infrared LED, a maximum working insulation voltage of 850V, and can withstand up to 6000V of transient overvoltage. Due to high market demand, lead times may be extended, and delivery dates are subject to change. This product is not eligible for discounts.
ONSEMI MOC3022VM Triac Driver Optoisolator Specifications:
- Peak Off-State Voltage: 250 V (MOC3010M), 400 V (MOC3020M, MOC3021M, MOC3022M, MOC3023M)
- Infrared LED Forward Voltage: 1.15 V at 10 mA
- Isolation Voltage (peak): 850 V
- Maximum Storage Temperature: -40°C to +150°C
- Operating Temperature Range: -40°C to +85°C
- Lead Solder Temperature (for 10 seconds): 260°C
- Peak Repetitive Surge Current: 1 A
- Payload Power Dissipation: 100-300 mW (dependent on model)
- Creepage Distance: 7 mm
- External Clearance: 7-10.16 mm
- Insulation Thickness: 0.5 mm
- Installation Classification: Class I (per DIN VDE 0110/1.89)
- Pollution Degree: 2
- Climatic Classification: 40/85/21
- Material: Infrared LED and silicon bilateral switch, UL recognized

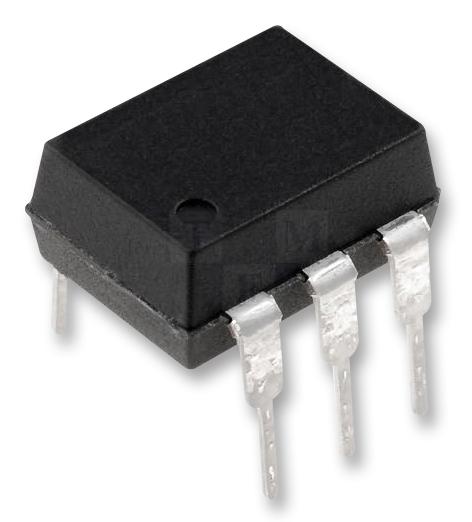

Buy the Buy FAIRCHILD MOC3022VM Part Number MOC3022VM Online
Purchase the FAIRCHILD MOC3022VM online today for a high-quality, reliable TRIAC driver optoisolator featuring high isolation voltage, UL recognition, and stable operation for motor control, lighting, and power switching applications. Easy to install, compatible with resistive and inductive loads, and suitable for industrial control systems. Ensuring optimum safety and performance, this component offers maximum working insulation voltage of 850V and surge withstand up to 6000V. Order now to experience durability and top-tier electrical insulation for your power management projects!
Get FAIRCHILD MOC3022VM today—built for high isolation voltage and reliable TRIAC driving performance.
Frequently Asked Questions
Where can I buy ONSEMI MOC3022VM?
You can click on the BUY or RFQ button to purchase MOC3022VM from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MOC3022VM?
You can download the MOC3022VM datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MOC3022VM?
ONSEMI
