ONSEMI PN2222ABU NPN Bipolar Transistor
The PN2222ABU is a versatile NPN bipolar junction transistor rated for 40V operation, ideal for medium power amplification and switching. It handles collector currents up to 500mA, with a collector-to-base voltage of 75V and emitter-to-base voltage of 6V. The device features a junction-to-case thermal resistance of 83.3°C/W and junction-to-ambient of 200°C/W, with switching times like a fall time of 60ns at 25°C. Suitable for power management, switching, and electronic circuit applications, it ensures reliable performance in various designs.
ONSEMI PN2222ABU NPN Bipolar Transistor Specifications:
- Collector-Emitter Voltage: 40 V
- Collector-Base Voltage: 75 V
- Emitter-Base Voltage: 6 V
- Collector Current: 1.0 A
- Operating Junction Temperature Range: -55 to 150°C
- Total Device Dissipation: 625 mW
- Thermal Resistance, Junction to Case: 83.3 °C/W
- Thermal Resistance, Junction to Ambient: 200 °C/W
- Fall Time: 60 ns at 25°C
- Pin Configuration: TO-92
- Package Type: Bulk, Ammo, Tape and Reel options

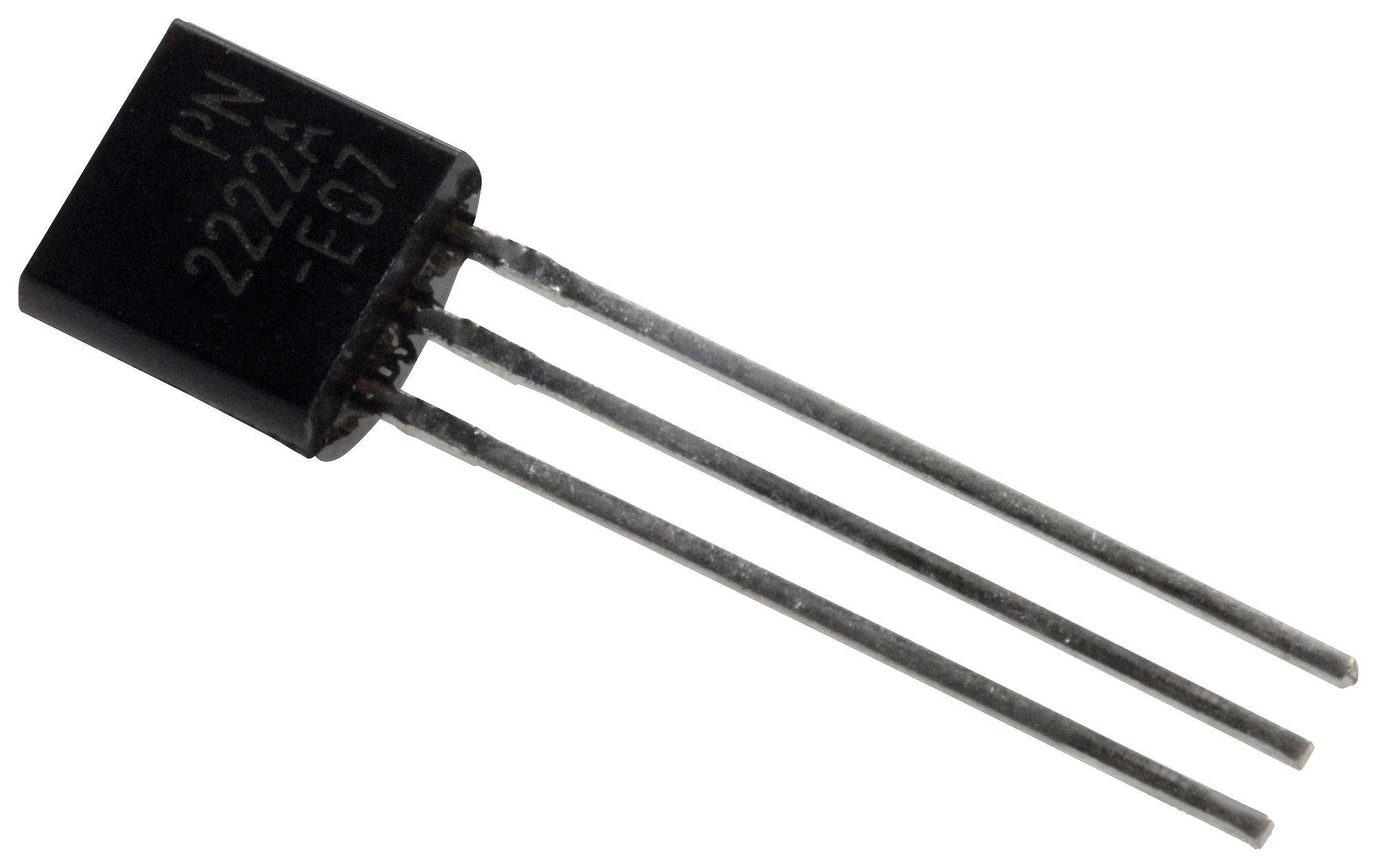

Buy the Buy ON Semiconductor PN2222A Part Number PN2222ABU Online
Purchase the ON Semiconductor PN2222A series PN2222ABU online today to benefit from high-quality, versatile NPN transistors suitable for power amplification and switching applications. With a maximum collector voltage of 40V and collector current capacity of 500mA, it’s ideal for power management in electronic devices. The device offers low thermal resistance, ensuring efficient heat dissipation, and features a switching fall time of 60ns. Invest in dependable components that ensure your circuits operate reliably and efficiently in various environments.
Order your ON Semiconductor PN2222A series PN2222ABU today and enhance your power switching and amplification circuits with reliable performance.
