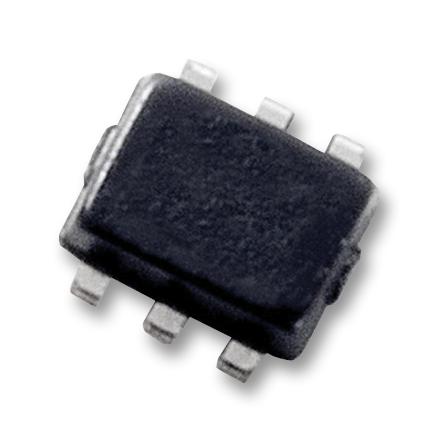

ONSEMI NTZD3152PT1G Dual P-channel MOSFET
The NTZD3152P is a compact, dual P-channel MOSFET designed for low-voltage high-current switching applications. Featuring low Rps(on) for improved system efficiency, a low threshold voltage, and ESD protected gates, this device is ideal for load and power switches, power supply converters, and battery management in portable electronics like cell phones, digital cameras, and PDAs. Packaged in a small 1.6 x 1.6 mm SOT-563 package, it is Pb-Free, halogen-free, and RoHS compliant. Its high current capability and thermal stability make it suitable for demanding industrial and consumer electronics.
ONSEMI NTZD3152PT1G Dual P-channel MOSFET Specifications:
- Drain-to-Source Voltage: 20 V
- Gate-to-Source Voltage: ±260 V
- Continuous Drain Current: 430 mA
- Power Dissipation: 250 mW
- Power Dissipation (t=5s): 280 mW
- Maximum Junction Temperature: 85°C
- Thermal Resistance (Junction-to-Ambient): 500 °C/W
- Body Diode Source Current: -350 mA
- Gate Threshold Voltage: 0.45 to -1.0 V
- On Resistance: 0.5 to 2.0 ohms (dependent on Vgs and Id)
- Input Capacitance: 105 to 175 pF
- Output Capacitance: 15 to 30 pF
- Reverse Transfer Capacitance: 10 to 20 pF
- Gate Charge: 17 to 25 nC
- Switching Delay Times: Specified; typical rise and fall times depend on Rg.
- Diode Forward Voltage: 0.8 to 1.2 V
- Thermal Package: SOT-563, 6-lead
- Soldering Temperature: 260°C
Buy the ON Semiconductor NTZD3152P – Reliable Power Switch for Industrial Applications
Purchase ON Semiconductor NTZD3152P today and enhance your electronic systems with this compact, highly efficient dual P-channel MOSFET. Perfect for load switches, power supply conversion, and battery management in portable devices. Its low Rps(on) and ESD protection ensure reliable operation, maximum system efficiency, and durability. Packaged in a small 1.6 x 1.6 mm SOT-563 case, it is RoHS compliant for environmentally responsible manufacturing. Invest in proven performance for your industrial or consumer electronic designs now.
Get ON Semiconductor NTZD3152P today—built for precision, high current handling, and long-lasting durability in industrial and portable electronic applications.
Frequently Asked Questions
Where can I buy ONSEMI NTZD3152PT1G?
You can click on the BUY or RFQ button to purchase NTZD3152PT1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NTZD3152PT1G?
You can download the NTZD3152PT1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NTZD3152PT1G?
ONSEMI
