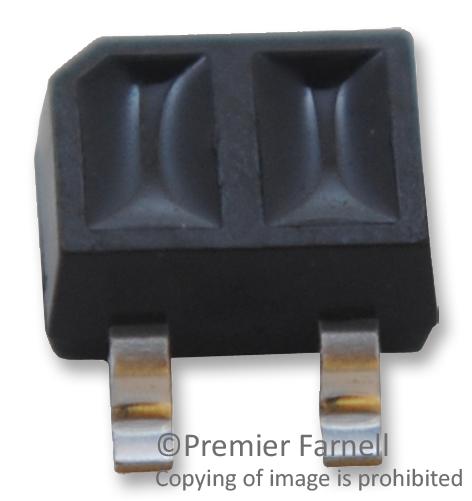

ONSEMI QRE1113GR Reflective Sensor Module
The QRE1113GR is a compact reflective object sensor with surface-mount gull wing leads, designed for non-contact surface sensing. It features a phototransistor output, ideal for sensing and instrumentation applications. The sensor offers two lead form options: through-hole and SMT gull wing, with various packaging choices including tube and tape and reel. Its miniature size and surface-mount design make it suitable for space-constrained environments. Key parameters include collector-emitter voltage of 30 V and a collector current of 20 mA, ensuring reliable performance in automation and sensing tasks.
ONSEMI QRE1113GR Reflective Sensor Module Specifications:
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +90°C
- Soldering Temperature (Iron): 240°C for 5 sec
- Collector-Emitter Voltage: 30 V
- Emitter-Collector Voltage: 5 V
- Collector Current: 20 mA
- Power Dissipation: 50 mW
- Forward Voltage: 1.2 to 1.6 V
- Peak Emission Wavelength: 940 nm
- Package Dimensions: 2.90 mm x 2.50 mm
- Type: Phototransistor Reflective Sensor
- Lead Form: Surface-mount gull wing
- Packaging Options: Tube, Tape and Reel
- Sensitivity: Suitable for 90% reflective white paper
- Response Time: 20 μs
Buy the Buy ON Semiconductor QRE1113GR Part Number QRE1113GR Online
Purchase the ON Semiconductor QRE1113GR online and enjoy fast delivery of this compact reflective sensor designed for non-contact surface detection. Its surface-mount gull wing package allows for easy integration into space-constrained systems, making it suitable for automation, sensing, and instrumentation applications. With a phototransistor output, high sensitivity, and reliable performance across operating temperatures, this sensor provides precise detection of reflective objects like white paper at distances up to a few millimeters. Order now for quality and dependable sensing capabilities.
Buy ON Semiconductor QRE1113GR now and experience reliable non-contact surface sensing in compact form for automation and measurement applications.
