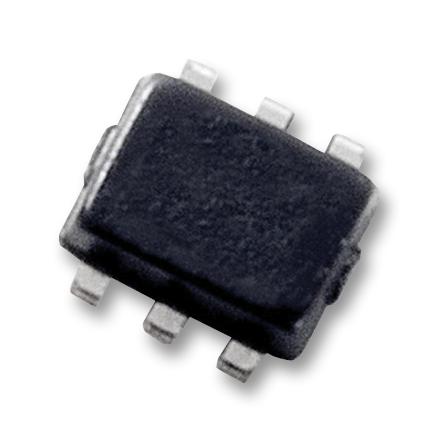

ONSEMI NUP4102XV6T1G Transient Voltage Suppressor Array
The NUP4102XV6T1G is a compact, bi-directional TVS array designed for transient overvoltage and ESD protection in high-density applications. Its small SOT-563 package offers protection for four lines with a peak power dissipation of 75 W. It features low leakage current (100 nA at 12 V), low capacitance (< 15 pF), and adheres to industry standards for ESD protection. This device is ideal for smartphones, tablets, set-top boxes, and other sensitive electronic equipment requiring space-saving, reliable surge suppression.
ONSEMI NUP4102XV6T1G Transient Voltage Suppressor Array Specifications:
- Peak Power Dissipation: 75 W (8x20 usec waveform)
- Reverse Working Voltage: 12 V
- Breakdown Voltage: 13.6 to 178 V
- Reverse Leakage Current: 10 to 100 nA at 12 V
- Clamping Voltage: 25 V at 3 A pulse
- Capacitance: 13 to 15 pF at 0 V and 1 MHz
- Maximum Peak Pulse Current: 30 A (8x20 usec waveform)
- Storage Temperature Range: -85°C to 150°C
- Operating Junction Temperature: -40°C to 125°C
- Lead Solder Temperature (max 10 sec): 260°C
- ESD Protection (HMM): 16 kV
- ESD Protection (MM): 4 kV
- Package: SOT-563, 6-lead, void-free transfer-molded plastic
- Dimensions: Compact SOT-563 package, designed for high-density assembly
Buy the ON Semiconductor NUP4102XV6 – Reliable TVS Array for Industrial Applications
Secure your sensitive electronic devices with the NUP4102XV6 transient voltage suppressor array from ON Semiconductor. Featuring bi-directional protection for four lines, it offers superior ESD and surge overvoltage defense fitting compact spaces. Its low leakage current, low capacitance, and industry-standard compliance make it ideal for smartphones, printers, computers, and other high-density, sensitive electronic equipment. Order online today to ensure your products are protected by proven surge suppression technology engineered for demanding industrial and consumer applications.
Buy ON Semiconductor NUP4102XV6 now and experience unmatched reliability and transient suppression for your high-density electronic designs.
Frequently Asked Questions
Where can I buy ONSEMI NUP4102XV6T1G?
You can click on the BUY or RFQ button to purchase NUP4102XV6T1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NUP4102XV6T1G?
You can download the NUP4102XV6T1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NUP4102XV6T1G?
ONSEMI
