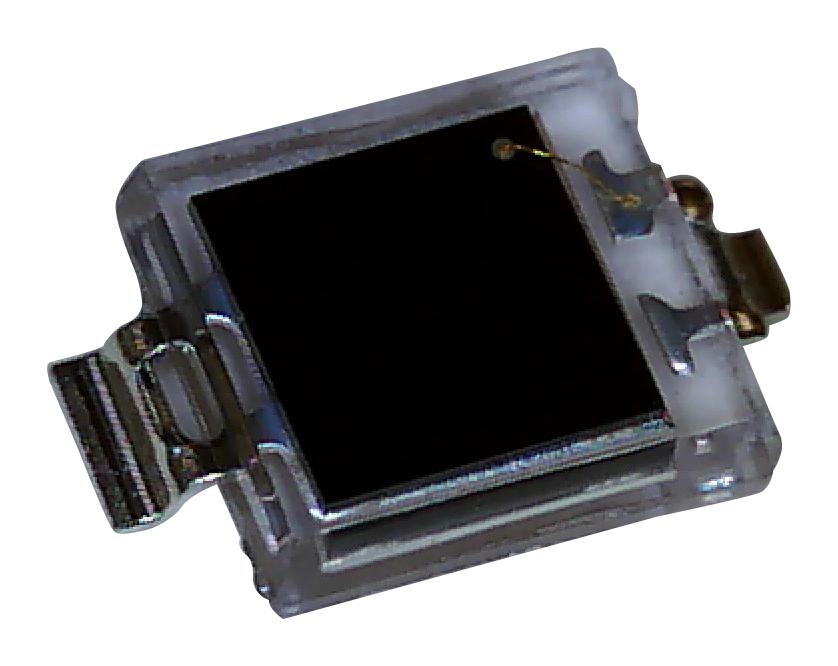

ONSEMI QSB34CGR Surface-Mount Silicon Photodiode
The surface-mount silicon pin photodiode offers daylight filtering, fast response times, high sensitivity, and wide reception angles suitable for various optical detection applications. Available in multiple packages with over-mount and under-mount configurations, it features a large chip size of 3 mm x 3 mm, sensitive area of 2.55 mm x 2.55 mm, and operates efficiently within -25°C to +85°C temperature range. Its low capacitance, high sensitivity, and rugged package design make it ideal for fiber optic communications and sensor systems.
ONSEMI QSB34CGR Surface-Mount Silicon Photodiode Specifications:
- Operating Temperature: -25 to +85°C
- Package: PLCC 2L
- Chip Size: 3 mm x 3 mm
- Sensitive Area: 2.55 mm x 2.55 mm
- Maximum Reverse Voltage: 32 V
- Dark Reverse Current: 30 nA at 10V
- Peak Sensitivity: 940 nm
- Reception Angle: +60°
- Capacitance: 25 pF at VR=3V
- Rise Time: 50 ns
- Fall Time: 50 ns
- Storage Temperature: -40 to +85°C
- Soldering Temperature: 260°C for less than 5 seconds
- High Sensitivity, Low Capacitance, Wide Reception Angle, Surface-Mount Package, Suitable for Optical Sensors, Fiber Optic Communication, Fast Response, Daylight Filter (QSB34GR and QSB34ZR only)
Buy the Buy onsemi Surface-Mount Silicon Pin Photodiode Part Number QSB34CGR Online
Purchase the onsemi surface-mount silicon pin photodiode QSB34CGR online today. This high-performance photodiode features daylight filtering, a large chip size of 3 mm x 3 mm, sensitive area of 2.55 mm x 2.55 mm, and operates effectively in temperatures from -25°C to +85°C. Its wide reception angle of +60°, low capacitance, and fast response times make it ideal for fiber optic communications, optical sensors, and other photodetection systems. Easily order in bulk with tape and reel packaging and enjoy fast delivery and reliable performance designed for demanding optical applications.
Buy onsemi QSB34CGR now and experience unmatched reliability and high sensitivity in optical detection applications.
Frequently Asked Questions
Where can I buy ONSEMI QSB34CGR?
You can click on the BUY or RFQ button to purchase QSB34CGR from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part QSB34CGR?
You can download the QSB34CGR datasheet or visit the ONSEMI website for support.
Who is the manufacturer of QSB34CGR?
ONSEMI
