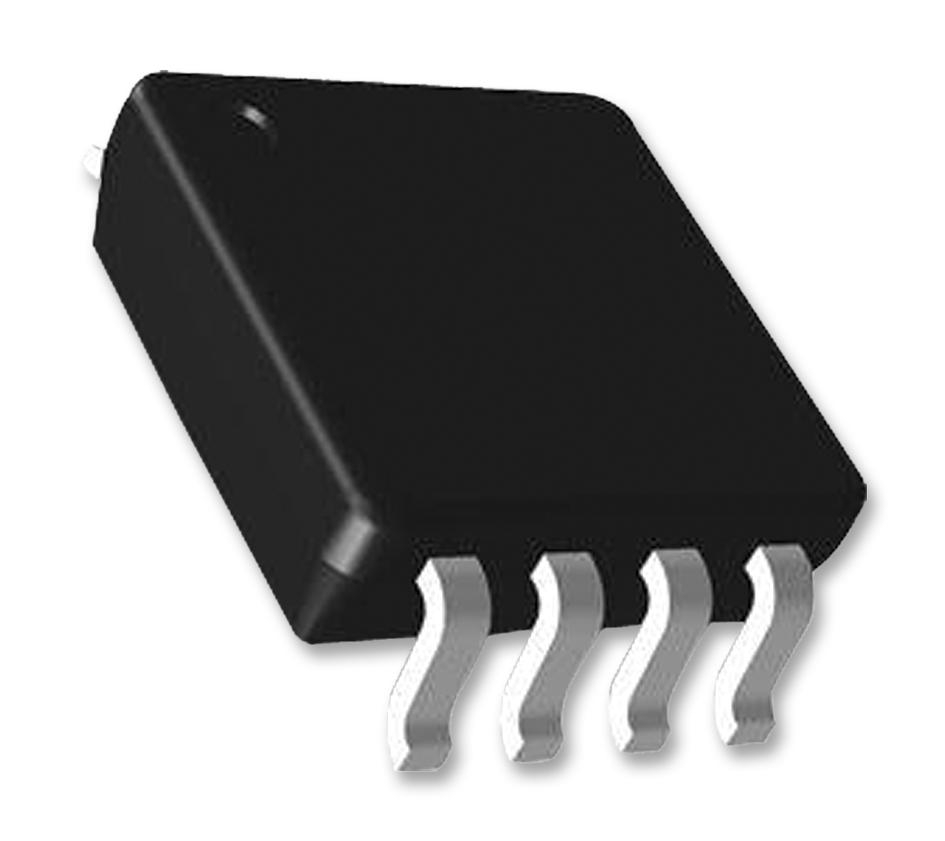

ONSEMI NC7WZ02K8X Dual NOR Gate
The NC7WZ02 is a dual 2-input NOR gate in a space-saving US8 surface-mount package, fabricated with advanced CMOS technology for ultra-high speed operation and high output drive. It features a broad Vcc operating range of 1.65V to 5.5V, with inputs and outputs that are high impedance when Vcc is 0V. The device supports overvoltage tolerance and proprietary noise reduction circuitry, making it suitable for high-speed logic applications in compact electronic systems.
ONSEMI NC7WZ02K8X Dual NOR Gate Specifications:
- Package: US8 surface mount, MicroPak Pb-Free leadless
- Number of Inputs: 2 per gate
- Number of Outputs: 1 per gate
- Operating Voltage Range: 1.65V to 5.5V
- Propagation Delay: 2.4ns typical into 50pF at 5V
- Output Drive: +24mA at 3V
- Input Voltage Tolerance: up to 7V independent of Vcc
- Power Dissipation: 250mW at 85°C
- Temperature Range: -40°C to +85°C
- Input Impedance: High when Vcc is 0V
- Overvoltage Tolerance Inputs: Yes
- Proprietary noise/EMI reduction circuitry
- Dimensions: 3.1mm width, 8-lead JEDEC MO-187 package
- Max Power Dissipation: 250mW
- Junction Temperature: 150°C
- Storage Temperature: -65°C to +150°C
Buy the Buy ON Semiconductor NC7WZ02K8X Part Number NC7WZ02K8X Online
Secure your ON Semiconductor NC7WZ02K8X dual NOR gate today from our online store. This high-speed CMOS device features a broad voltage range from 1.65V to 5.5V, high output drive capability, and overvoltage tolerant inputs. Ideal for high-speed logic applications, it offers low static power dissipation, proprietary noise reduction circuitry, and a compact surface-mount MicroPak package, ensuring reliable performance in space-constrained designs. Order now to enhance your electronic projects with this advanced logic component, backed by fast delivery and excellent support.
Buy ON Semiconductor NC7WZ02K8X now and experience ultra-high speed logic performance with overvoltage tolerance and low power consumption for compact electronic designs.
Frequently Asked Questions
Where can I buy ONSEMI NC7WZ02K8X?
You can click on the BUY or RFQ button to purchase NC7WZ02K8X from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part NC7WZ02K8X?
You can download the NC7WZ02K8X datasheet or visit the ONSEMI website for support.
Who is the manufacturer of NC7WZ02K8X?
ONSEMI
