ONSEMI QSB34GR Silicon Photodiode
This surface-mount silicon pin photodiode features a wide reception angle of 120°, large chip size of 3 mm x 3 mm, and high sensitivity, making it ideal for daylight filtering and optical detection applications. The device offers fast response times with rise and fall times of 50 ns, and a peak sensitivity at 940 nm. Available in PLCC packages with tape and reel options, it operates from -25°C to +85°C, supporting efficient optical signal detection in various industrial or sensor systems.
ONSEMI QSB34GR Silicon Photodiode Specifications:
- Operating Temperature: -25 to +85°C
- Storage Temperature: -40 to +85°C
- Soldering Temperature: 260°C for <5 seconds
- Reverse Voltage: 32 V
- Power Dissipation: 150 mW at 25°C
- Peak Sensitivity: 940 nm
- Reception Angle: 120°
- Active Area: 2.55 mm x 2.55 mm
- Chip Size: 3 mm x 3 mm
- Capacitance: 25 pF at VR=3V
- Rise and Fall Time: 50 ns
- Package Options: PLCC 2L in Tape and Reel, 1000 units per reel

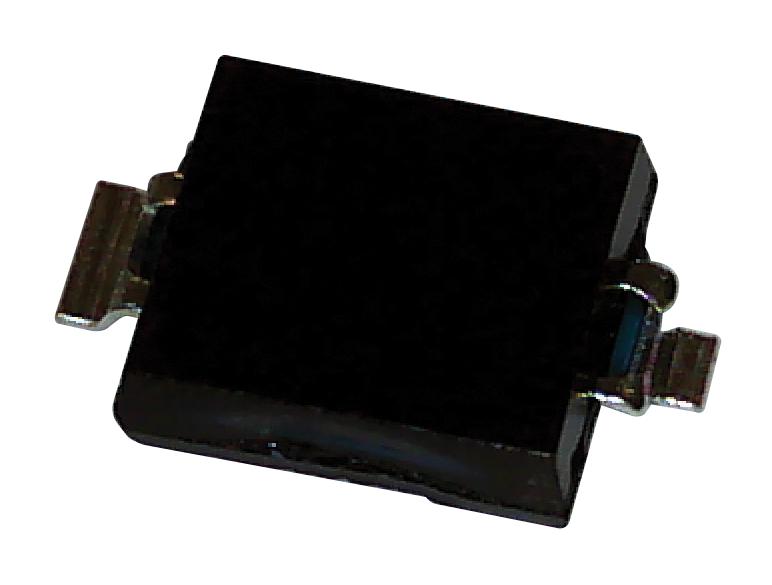

Buy the onsemi Series Photodiode QSB34GR: 32V Reverse Voltage
Order the onsemi QSB34GR silicon photodiode online today to ensure fast delivery of a high-sensitivity optical sensor with wide reception angle and quick response times, perfect for industrial optical detection, daylight filtering, and sensor systems. This surface-mount device is available in tape and reel packaging for easy integration into your manufacturing process. Its robust specifications support reliable performance in demanding environments, making it ideal for various professional applications requiring precise optical signal detection and high sensitivity in compact form factors.
Buy onsemi QSB34GR now and experience unmatched reliability and fast optical response for your sensing or daylight filtering applications.
Frequently Asked Questions
Where can I buy ONSEMI QSB34GR?
You can click on the BUY or RFQ button to purchase QSB34GR from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part QSB34GR?
You can download the QSB34GR datasheet or visit the ONSEMI website for support.
Who is the manufacturer of QSB34GR?
ONSEMI
