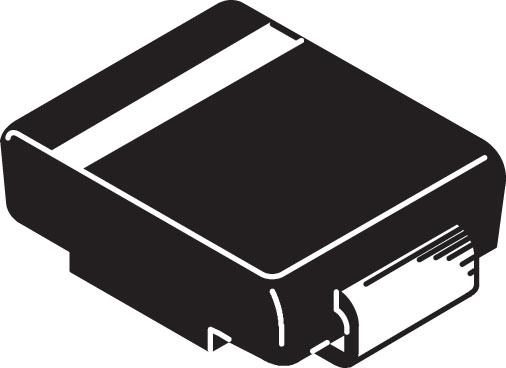

ONSEMI MURA130T3G Ultrafast Power Rectifier
Reliable ultrafast power rectifiers designed for high voltage, high frequency rectification, and surface mount applications requiring compact size and lightweight design. Features include a small, J-bend lead package, rectangular form for automation, high-temp glass passivated junction, low forward voltage drop of 0.8 V at 1.0 A and 150°C, and compliance with RoHS standards. Suitable for automotive and industrial systems, these devices are Pb-free, halogen-free, and PPAP capable, ensuring durability, corrosion resistance, and excellent electrical performance under demanding conditions.
ONSEMI MURA130T3G Ultrafast Power Rectifier Specifications:
- Maximum Peak Reverse Voltage: 300V for MURA130, 400V for MURA140 and SURA8140
- Average Rectified Forward Current: 1.0A at 150°C, 2.0A at 125°C
- Non-Repetitive Peak Surge Current: 35A
- Operating Junction Temperature Range: -65°C to +175°C
- Thermal Resistance, Junction-to-Lead: 24°C/W
- Thermal Resistance, Junction-to-Ambient: 216°C/W
- Maximum Instantaneous Forward Voltage: 0.8V at 1.0A and 150°C
- Maximum Reverse Current: 5.0 nA at 25°C, 150 nA at 150°C
- Reverse Recovery Time: 65 ns
- Package: Surface mount SMA case 403D with epoxy mold, approx. 70 mg weight
- Soldering: Max 260°C for 10 seconds, leads are solderable
- Polarity: Cathode marked by polarity band
- ESD Protection: > 4000 V human body model, > 400 V machine model
Buy the ON Semiconductor MURA130 – Reliable Power Rectifier for Industrial Applications
Buy the ON Semiconductor MURA130 ultrafast power rectifier online today and enhance your high voltage and high frequency systems. Designed for surface mount applications, it features low forward voltage drop, high peak surge current capacity, and excellent ESD protection for maximum reliability. This compact, RoHS-compliant device is ideal for automotive, industrial, and high-frequency rectification tasks, offering quick installation, durability, and efficient performance. Order now to secure top-quality components for your critical systems and ensure optimal operation under demanding conditions.
Order your ON Semiconductor MURA130 ultrafast power rectifier today and ensure high efficiency and reliability in your automotive and industrial projects.
Frequently Asked Questions
Where can I buy ONSEMI MURA130T3G?
You can click on the BUY or RFQ button to purchase MURA130T3G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MURA130T3G?
You can download the MURA130T3G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MURA130T3G?
ONSEMI
