ONSEMI RGF1G High-Speed Rectifier
The RGF1G fast rectifier features a glass passivated junction suitable for surface-mounted applications. It offers a low forward voltage drop, high current capacity, and high surge current capability. Equipped with easy pick-and-place design and a colorband denoting the cathode, it is ideal for efficient power rectification in electronic circuits with a maximum repetitive reverse voltage of 1000V and a non-repetitive surge current of 30A. Its thermal and electrical characteristics ensure reliable performance for high-speed switching and power applications.
ONSEMI RGF1G High-Speed Rectifier Specifications:
- Maximum Repetitive Reverse Voltage: 50 to 1000 V (varies by series)
- Average Rectified Forward Current: 1.0 A at TL = 125°C
- Non-Repetitive Peak Forward Surge Current: 30 A (8.3 ms surge)
- Storage Temperature Range: -65 to +175 °C
- Operating Junction Temperature: -65 to +175 °C
- Power Dissipation: 1.76 W
- Thermal Resistance, Junction-to-Ambient: 85 °C/W
- Thermal Resistance, Junction-to-Lead: 28 °C/W
- Forward Voltage: 1.3 V at IF=1.0A
- Reverse Recovery Time: 25-500 ns (depends on series)
- Total Capacitance: approximately 85 pF
- Package Type: DO-214AC (SMA)
- Packging Method: Tape and Reel

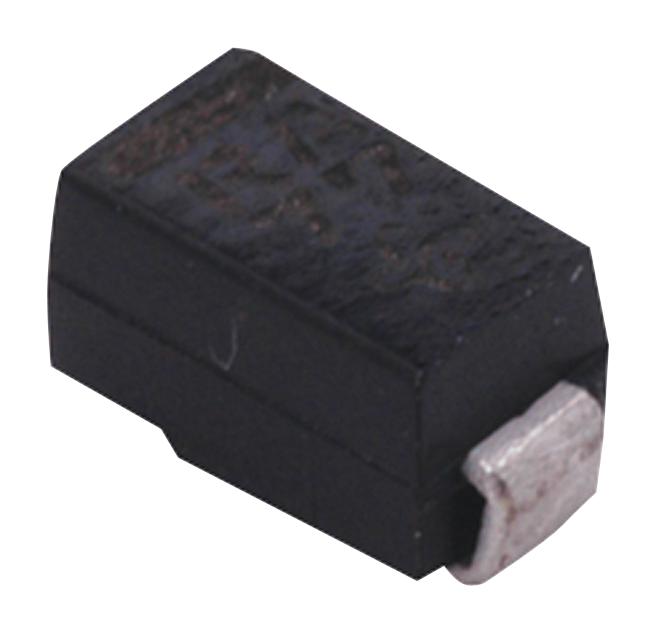

Buy the Buy ON Semiconductor RGF1G Part Number RGF1G Online
Purchase the ON Semiconductor RGF1G high-speed rectifier online today for efficient power rectification in your electronic projects. Featuring a glass passivated junction, it provides a low forward voltage drop, high surge current capacity, and reliable performance at high frequencies. Its surface-mount design simplifies assembly, while its robust ratings ensure durability and dependable operation in demanding power supply and switching applications. Get your RGF1G rectifier now and enhance your electronic systems’ efficiency and reliability with quick online ordering.
Order your ON Semiconductor SeriesRGF1G high-speed rectifier today and ensure reliable power conversion with high surge current capability and surface mount convenience.
Frequently Asked Questions
Where can I buy ONSEMI RGF1G?
You can click on the BUY or RFQ button to purchase RGF1G from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part RGF1G?
You can download the RGF1G datasheet or visit the ONSEMI website for support.
Who is the manufacturer of RGF1G?
ONSEMI
