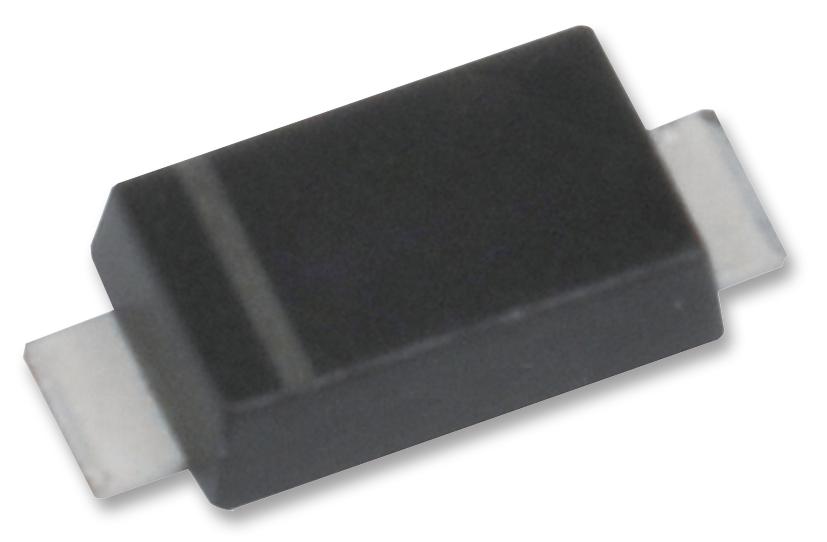

ONSEMI RS1MFP Fast Recovery Diode
The RS1MFP is a high-efficiency surface-mount fast recovery diode featuring low power loss, an ultra-thin package height under 1.0 mm, and high surge capacity. Designed for industrial applications, it has a low forward voltage of 1.3 V maximum and is RoHS compliant with UL 94-0 flammability classification. The device operates within a temperature range of -55°C to +150°C, offers high surge capability of 50 A, and comes in a durable SOD-123HE package suitable for compact electronic designs. It is ideal for power rectification, switching power supplies, and transient suppression circuits.
ONSEMI RS1MFP Fast Recovery Diode Specifications:
- Peak Repetitive Reverse Voltage: 600-1000 V
- RMS Reverse Voltage: 420-700 V
- DC Blocking Voltage: 600-1000 V
- Average Forward Rectified Current: 1.2 A
- Peak Forward Surge Current: 50 A
- Operating Junction Temperature Range: -55°C to +150°C
- Thermal Resistance, Junction-to-Ambient: 140 °C/W
- Thermal Resistance, Junction-to-Lead: 12 °C/W
- Forward Voltage: 1.3 V max at 1.2 A
- Reverse Recovery Time: 300 ns
- Junction Capacitance: 18 pF
Buy the Buy ON Semiconductor RS1MFP Part Number RS1MFP Online
Purchase the ON Semiconductor RS1MFP fast recovery diode online now and benefit from a high-efficiency component with low power loss, ultra-thin profile, and excellent surge capacity. Ideal for power rectification, transient suppression, and switching power supplies, this diode ensures dependable performance in compact industrial applications. With a maximum forward voltage of 1.3 V and robust thermal characteristics, it provides excellent reliability and quality for your electronic designs. Get yours today to upgrade your power systems effectively.
Order your ON Semiconductor SeriesRS1MFP fast recovery diode today and enhance your power circuits with reliable, high surge capacity and space-saving design.
Frequently Asked Questions
Where can I buy ONSEMI RS1MFP?
You can click on the BUY or RFQ button to purchase RS1MFP from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part RS1MFP?
You can download the RS1MFP datasheet or visit the ONSEMI website for support.
Who is the manufacturer of RS1MFP?
ONSEMI
